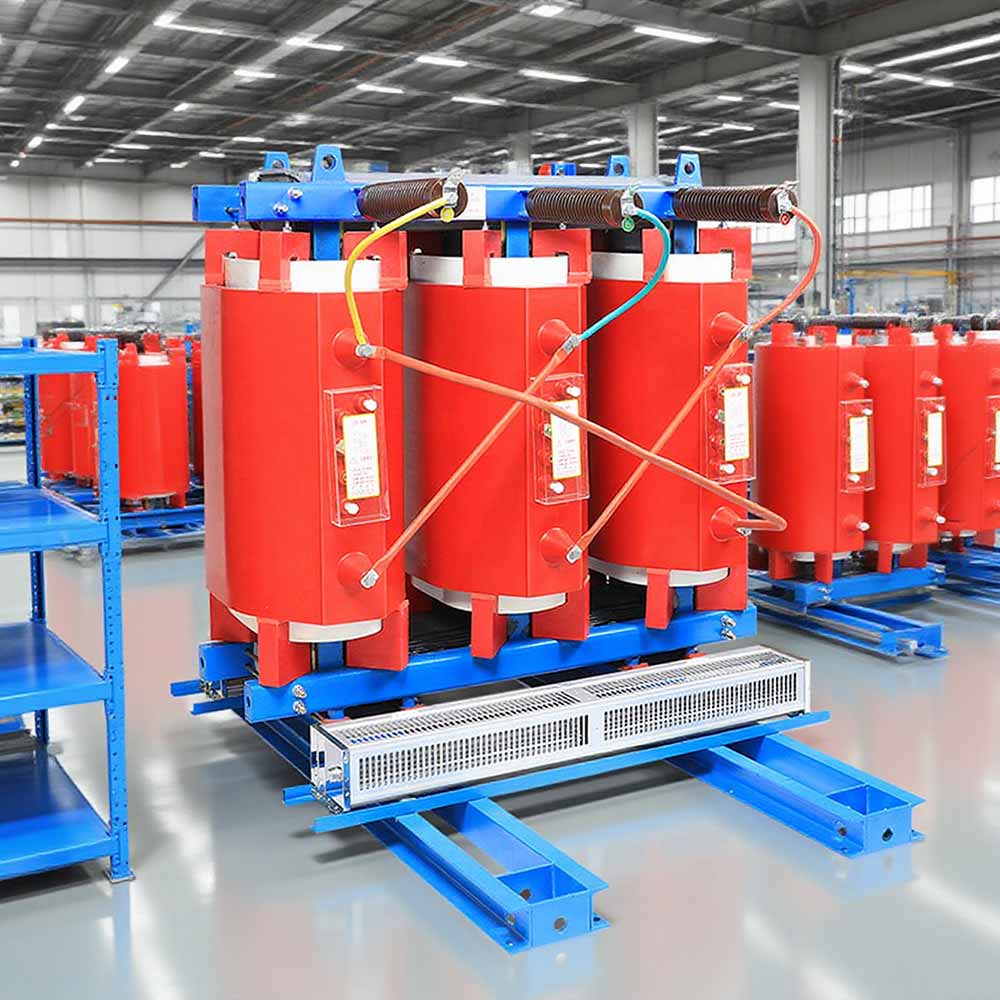

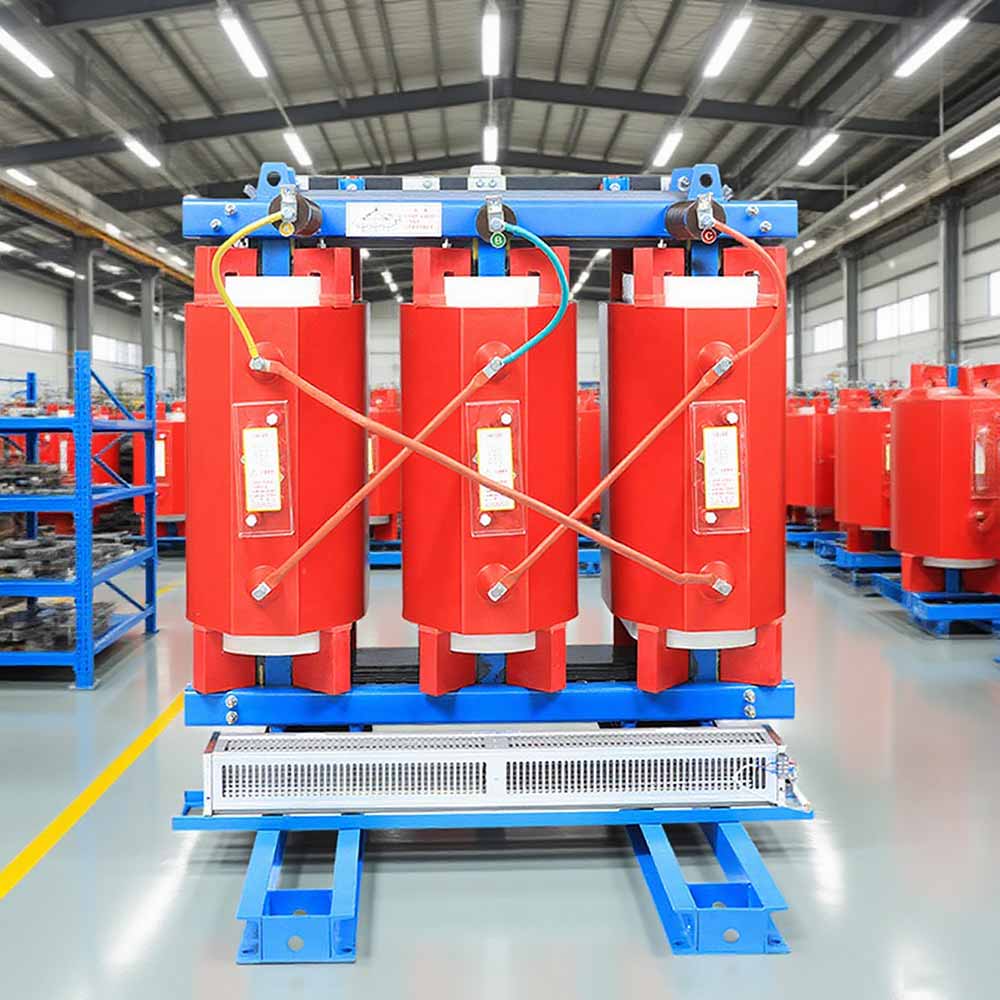

10kv High Voltage 100 kva Dry Type Transformer

In modern power distribution systems, reliability, safety, and environmental friendliness are non-negotiable. The 10kv High Voltage 100 kva Dry Type Transformer emerges as a game-changer, addressing the limitations of traditional oil-immersed transformers while meeting the demands of medium-voltage (MV) applications. This guide breaks down its key benefits, ideal use cases, technical specs, and how to choose the right model for your project.

Why Choose a 10kv 100kva Dry Type Transformer?

Unlike oil-immersed transformers that rely on insulating oil (posing fire and leakage risks), the 10kv High Voltage 100 kva Dry Type Transformer uses air or solid insulation (e.g., epoxy resin) to cool and insulate its windings. Here’s why it’s a top choice:

Enhanced Safety: No flammable oil means zero risk of oil leaks, fires, or environmental contamination. This makes it perfect for indoor or densely populated areas (e.g., commercial buildings, data centers).
Low Maintenance: Dry-type design eliminates the need for oil testing, replacement, or tank inspections. Routine checks (e.g., cleaning windings) are simple, reducing downtime and operational costs.
Wide Environmental Adaptability: It performs reliably in extreme temperatures (-20°C to 40°C) and high-humidity environments, thanks to corrosion-resistant materials and sealed windings.
Energy Efficiency: Advanced core materials (e.g., high-grade silicon steel) and optimized winding design minimize iron and copper losses, complying with global energy standards (e.g., IE2, IE3) and cutting electricity bills.
Compact Footprint: Compared to oil-immersed alternatives, the 100kva 10kv dry transformer is smaller and lighter, saving valuable installation space—critical for retrofits or space-constrained projects.

Typical Applications of 10kv High Voltage 100kva Dry Type Transformer

The 10kv voltage rating and 100kva capacity make this transformer versatile for medium-power MV distribution. Common use cases include:

Industrial Facilities: Powers heavy machinery, assembly lines, and control systems in manufacturing plants (e.g., automotive, electronics, food processing), where safety and continuous operation are vital.
Commercial & Residential Buildings: Supplies stable power to high-rise apartments, shopping malls, hotels, and office complexes—indoor installation is safe and compliant with fire codes.
Data Centers & Telecoms: Delivers consistent voltage to servers, routers, and backup systems. Its low noise (≤55dB) and high reliability prevent data loss from power fluctuations.
Renewable Energy Projects: Integrates with solar or wind farms to step down voltage from 10kv (collection systems) to low voltage (LV) for grid connection or on-site use.
Hospitals & Schools: Meets strict safety requirements for sensitive equipment (e.g., MRI machines, lab tools) and ensures uninterrupted power for critical operations.

Key Technical Specifications of 10kv 100kva Dry Type Transformer

To ensure compatibility with your system, focus on these critical specs when evaluating models:

Parameter	Typical Value
Input Voltage	10kv (±5% tolerance for voltage fluctuations)
Rated Capacity	100kva
Cooling Method	AN (Air Natural) or AF (Air Forced)
Insulation Class	F (155°C) or H (180°C)
温升 (Temperature Rise)	≤100K (AN) / ≤80K (AF)
Protection Class	IP20 (indoor) or IP30 (semi-outdoor)
Frequency	50Hz / 60Hz (dual-frequency options available)
Efficiency	≥97.5% (at full load)
Short-Circuit Withstand	25kA / 1s (compliant with IEC 60076)

How to Select the Right 10kv 100kva Dry Type Transformer

Follow these steps to match the transformer to your project needs:

Confirm Load Requirements: Calculate peak load (not just rated 100kva) to avoid overloading. For fluctuating loads (e.g., industrial machines), choose an AF-cooled model for extra capacity.
Check Installation Environment: Opt for IP30 if installing in semi-outdoor areas (e.g., utility yards); IP20 suffices for clean indoor spaces (e.g., data centers).
Prioritize Certifications: Select models with IEC, CE, UL, or local certifications (e.g., GB for China) to ensure compliance with safety and quality standards.
Choose a Reputable Manufacturer: Look for suppliers offering after-sales support (e.g., maintenance, spare parts) and a warranty (3–5 years typical for dry-type transformers).

Conclusion

The 10kv High Voltage 100kva Dry Type Transformer combines safety, efficiency, and versatility, making it the go-to solution for modern MV power distribution. Whether you’re upgrading an industrial plant, building a data center, or integrating renewable energy, its low maintenance and environmental adaptability reduce long-term costs while ensuring reliable performance.

To find a customized 10kv 100kva dry type transformer that fits your project specs, contact a trusted manufacturer today—ensure they offer tailored designs and compliance with your region’s energy standards.
