Overview of 20 MVA Power Transformer

Looking for a high-performance solution to meet your power distribution system’s unique demands? Our 20 MVA power transformer is engineered specifically to align with your operational needs—delivering the capacity, efficiency, and dependability you require.

With a robust 20 MVA capacity, this power transformer excels at efficient high-power transmission. It minimizes energy loss even during peak load periods, ensuring your power distribution system operates at optimal performance levels.

Ideal for applications where uncompromised stability and long-term reliability are critical, our 20 MVA power transformer is the go-to choice for industrial facilities, commercial complexes, utility grids, and more. Whether you’re upgrading an existing system or building a new infrastructure, it’s designed to support your long-term operational goals.

Ready to enhance your power distribution system with a reliable 20 MVA power transformer? Contact our team today to discuss your specific requirements and get a tailored solution.

Advantages of 20 MVA Power Transformer

Flexible standard adaptation: Supports international standards such as GB, IEC, and UL, with customization available based on customer requirements;

Multi-national authoritative certifications: Certified by ISO, CE, UL, etc., ensuring reliable quality;

High efficiency: Exceeds 99% efficiency, complying with the European Tier 2 energy efficiency regulation (2015/2014/548/EC) for excellent energy savings;

Maintenance-free operation: Features IP65 protection class for dust and moisture resistance, with a design life of over 25 years for hassle-free use;

Environmental friendliness: Optional FR3 vegetable oil, meeting environmental protection and sustainable development needs;

Strong overload capacity: Copper coil design allows short-term overload up to 150% of rated capacity (maximum 2 hours), with only oil temperature monitoring required (≤95℃).

20 MVA Power Transformer Technical Parameters

Transformer Type	Oil Immersed 20 MVA Power Transformer
Manufacture Standard	IEC60076
Rating capacity	20MVA
Rated HT voltage	33KV
Rated LT voltage	11Kv
20 MVA Transformer Current Rating	3499.2A / 1049.8A
Cooling Way	ONAN/ONAF
Vector Group	Dyn11
Temperature rise	60/65K
Insulation class	A
Impedance	10%
Winding Material	Copper
Insulation media	Mineral Oil comply with IEC
20 MVA Transformer Oil Capacity	6000kg
20 MVA Transformer Weight	30000kg
20 MVA Transformer Dimensions	320043003300mm

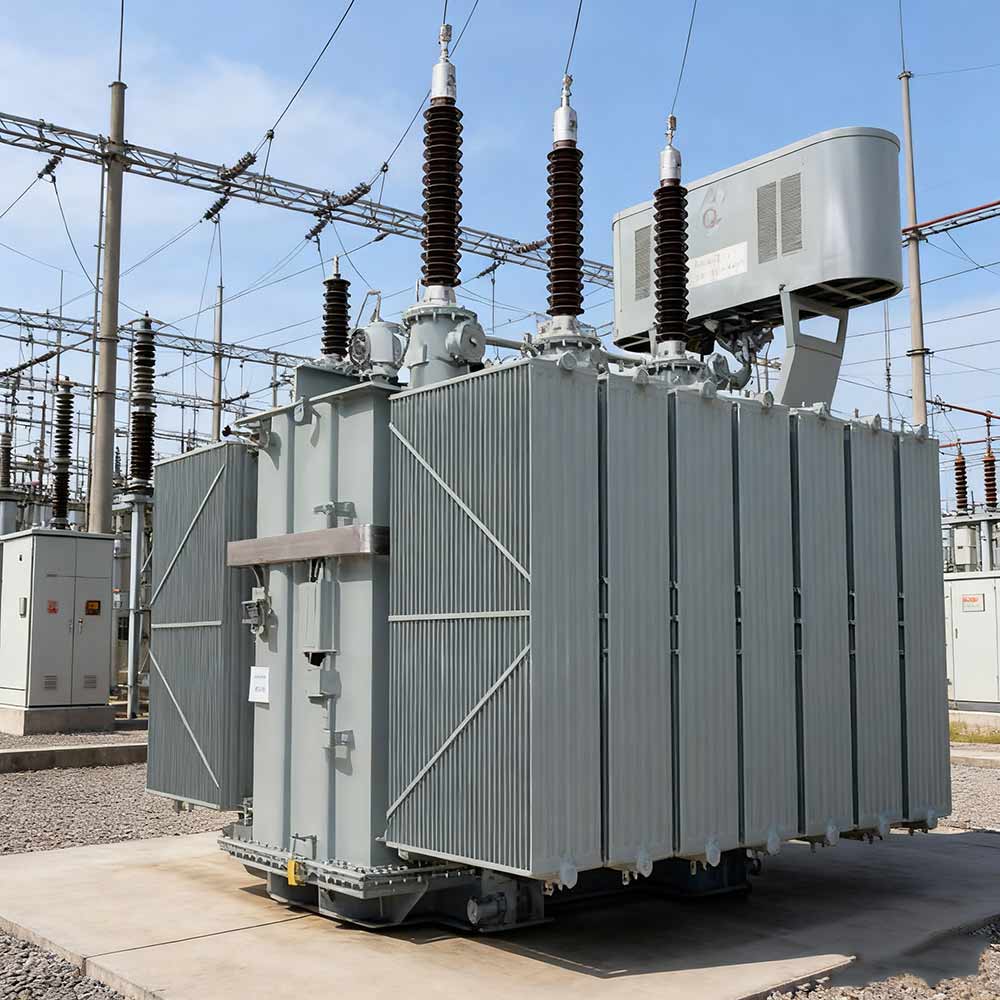

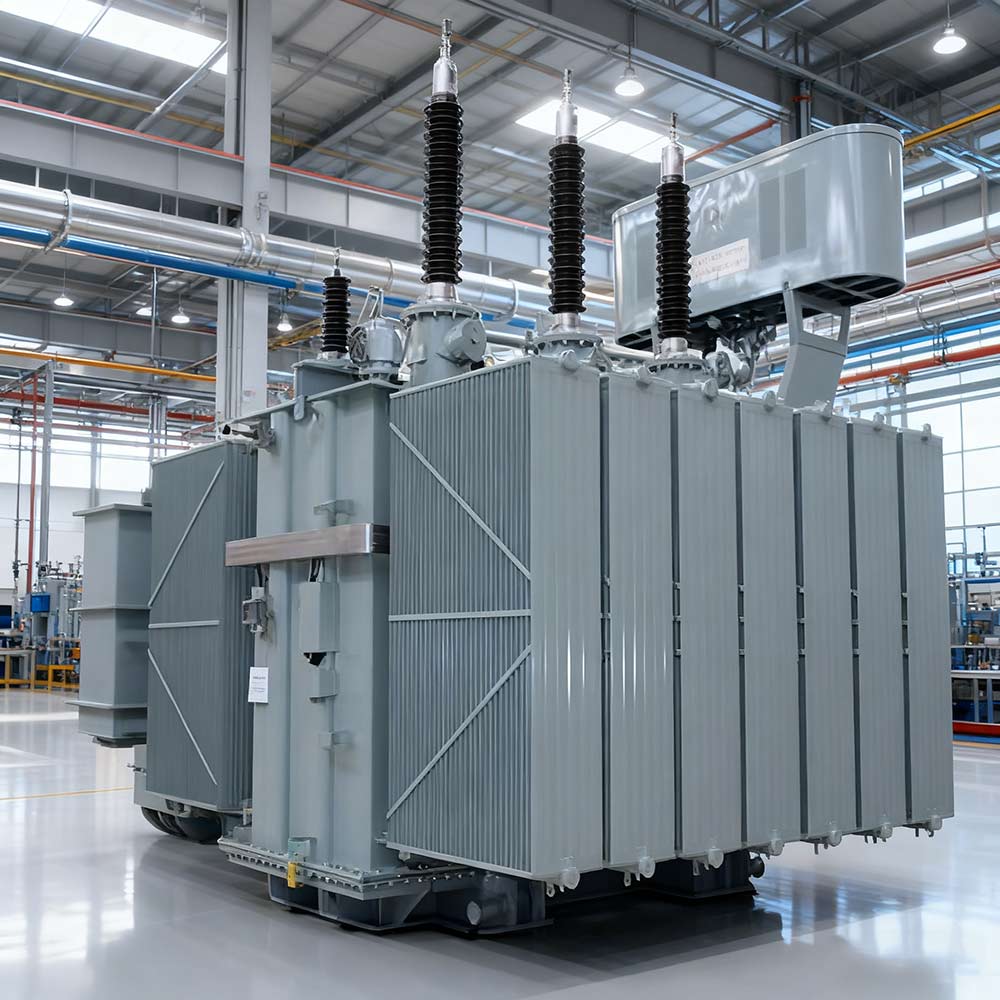

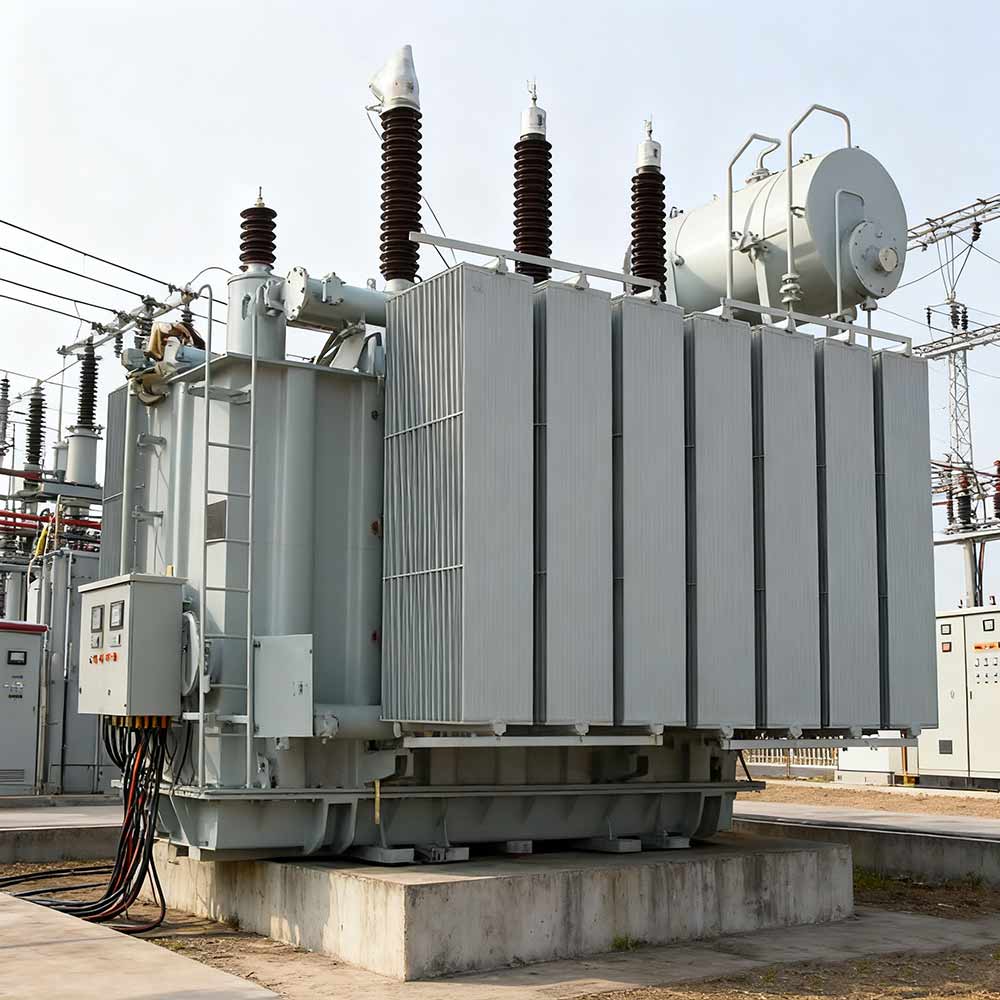

20 MVA Power Transformer Case Display

This display highlights the 20 MVA power transformer’s high efficiency, stable operation and reliable performance. It emphasizes the equipment’s adaptability to utility grids, large industrial complexes and critical infrastructure, helping viewers quickly grasp its value in meeting heavy-duty power demands.

20 MVA Power Transformer Business Cooperation

We focus on 20 MVA power transformer business collaboration, offering high-performance, durable units for power grids, industrial hubs, and renewable energy setups. With tailored solutions, professional tech support, and reliable delivery, we meet partners’ large-scale power needs, fostering mutually beneficial growth.
