Compact Box Transformer Substation Description

In the era of rapid urbanization and intelligent power grids, traditional substations—with their large footprint, long construction cycles, and high maintenance costs—are increasingly unable to meet the demands of dense urban areas, industrial parks, and new energy projects. Against this backdrop, the Compact Box Transformer Substation has emerged as a game-changing solution, integrating core power equipment into a prefabricated, enclosed unit to deliver efficient, reliable power distribution. This article provides an authoritative overview of Box Transformer Substation, its components, advantages, and applications.

What Is a Box Transformer Substation?

A Box Transformer Substation (often referred to as a “prefabricated box substation”) is an integrated power distribution device that condenses three core systems—high-voltage switchgear, power transformer, and low-voltage distribution equipment—into a single, weatherproof metal enclosure.

Designed to comply with international and national standards (e.g., IEC 62271 for high-voltage switchgear, GB/T 17467 for prefabricated substations), Box Transformer Substation eliminates the need for on-site construction of separate power rooms. All components are pre-assembled, wired, and tested in the factory, ensuring consistent quality and reducing on-site workloads. Its compact design makes it ideal for scenarios where space is limited, while its enclosed structure guarantees safe operation in outdoor environments.

Core Components of a Box Transformer Substation

The functionality of a Box Transformer Substation relies on three interconnected compartments, each with a specific role:

High-Voltage Compartment

Equipped with vacuum circuit breakers, isolating switches, and current/voltage transformers, this compartment manages the input of high-voltage power (typically 10kV or 35kV). It also includes protection devices (e.g., overcurrent relays) to cut off faulty circuits quickly, preventing damage to the system.
Transformer Compartment

Housing a dry-type or oil-immersed power transformer (depending on the application), this compartment is the “heart” of the Box Transformer Substation. It steps down high-voltage electricity to low-voltage levels (e.g., 0.4kV) suitable for end users (residents, factories, etc.). Dry-type transformers are preferred for indoor or environmentally sensitive areas (e.g., residential communities), while oil-immersed transformers excel in outdoor, high-load scenarios (e.g., industrial parks).
Low-Voltage Compartment

This compartment distributes the stepped-down low-voltage power to end users. It includes low-voltage circuit breakers, reactive power compensation devices (to improve power factor), and energy metering instruments. The reactive power compensation module is particularly critical—it reduces energy loss and ensures stable voltage for sensitive equipment (e.g., computers, industrial machinery).

Key Advantages of Box Transformer Substation

Compared to traditional substations, Box Transformer Substation offers five irreplaceable benefits, making it a top choice for modern power distribution:

Ultra-Compact Footprint: Box Transformer Substation occupies 50%–70% less space than traditional substations. For example, a 10kV/0.4kV Box Transformer Substation for residential use typically requires only 10–20㎡, making it easy to install in narrow urban lots or rooftop areas.
Rapid Deployment: Since all components are factory-tested, on-site installation takes just 1–3 days (vs. several weeks for traditional substations). This is crucial for emergency power needs (e.g., disaster relief) or fast-track projects (e.g., new residential complexes).
High Safety & Reliability: The fully enclosed metal box (with IP54/IP65 protection ratings) shields internal components from rain, dust, and vandalism. Insulated designs and anti-misoperation locks further reduce the risk of electric shock or short circuits.
Low Maintenance Costs: Intelligent Box Transformer Substation models come with remote monitoring systems that track load, temperature, and equipment status in real time. This allows for predictive maintenance—reducing on-site inspections and minimizing downtime.
Strong Environmental Adaptability: Box Transformer Substation operates stably in temperatures ranging from -30℃ to 50℃, and can withstand humidity, salt spray, and dusty conditions. It is suitable for both northern cold regions and southern coastal areas.

Typical Application Scenarios

Box Transformer Substation’s versatility makes it widely used across multiple sectors:

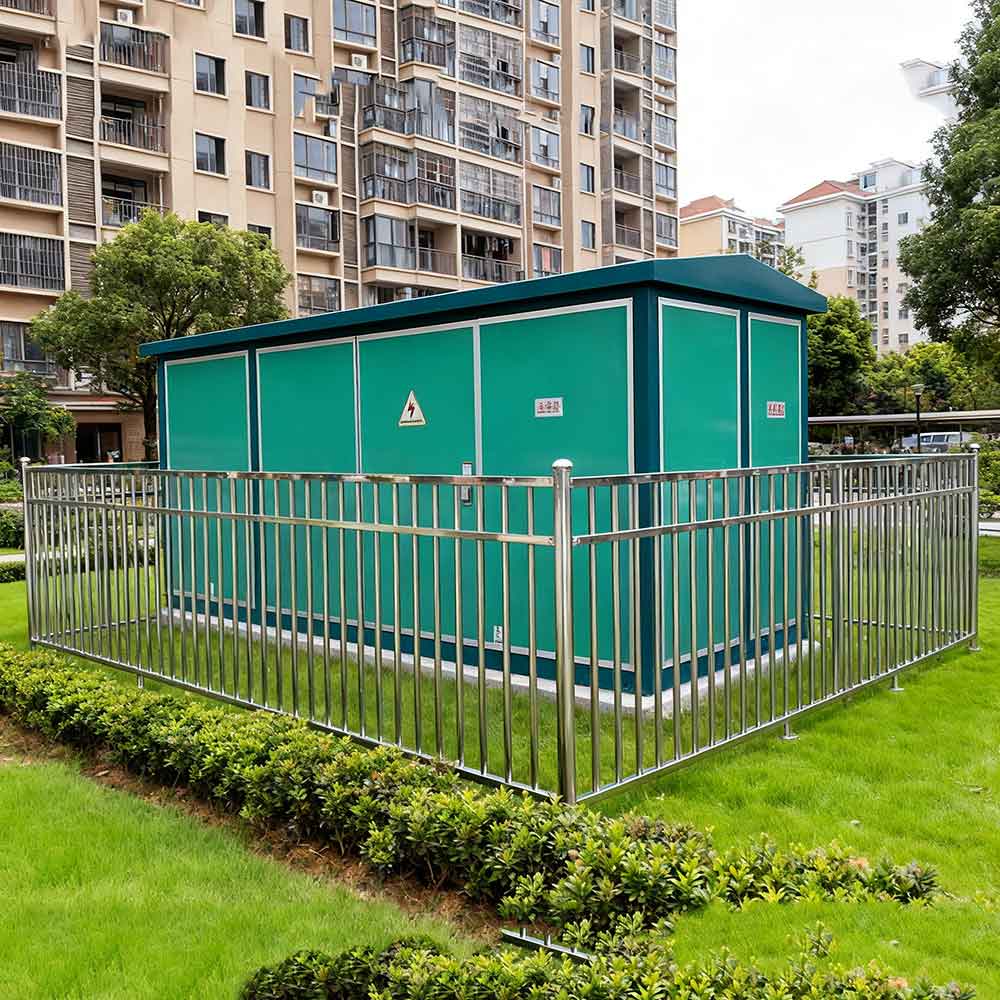

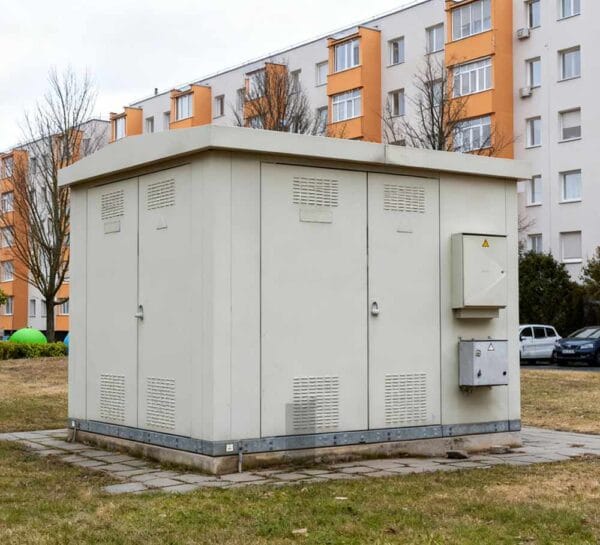

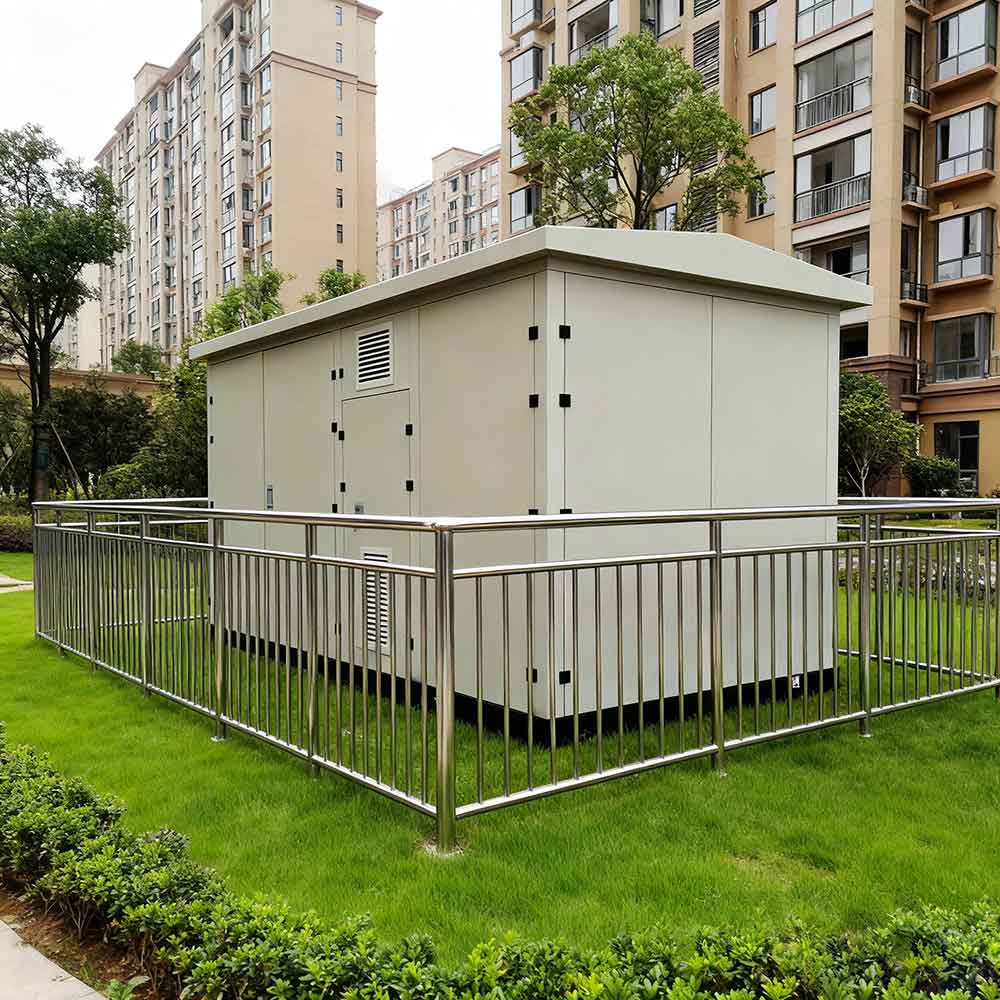

Residential Communities: Provides power for apartments and villas, fitting seamlessly into green spaces without disrupting the landscape.

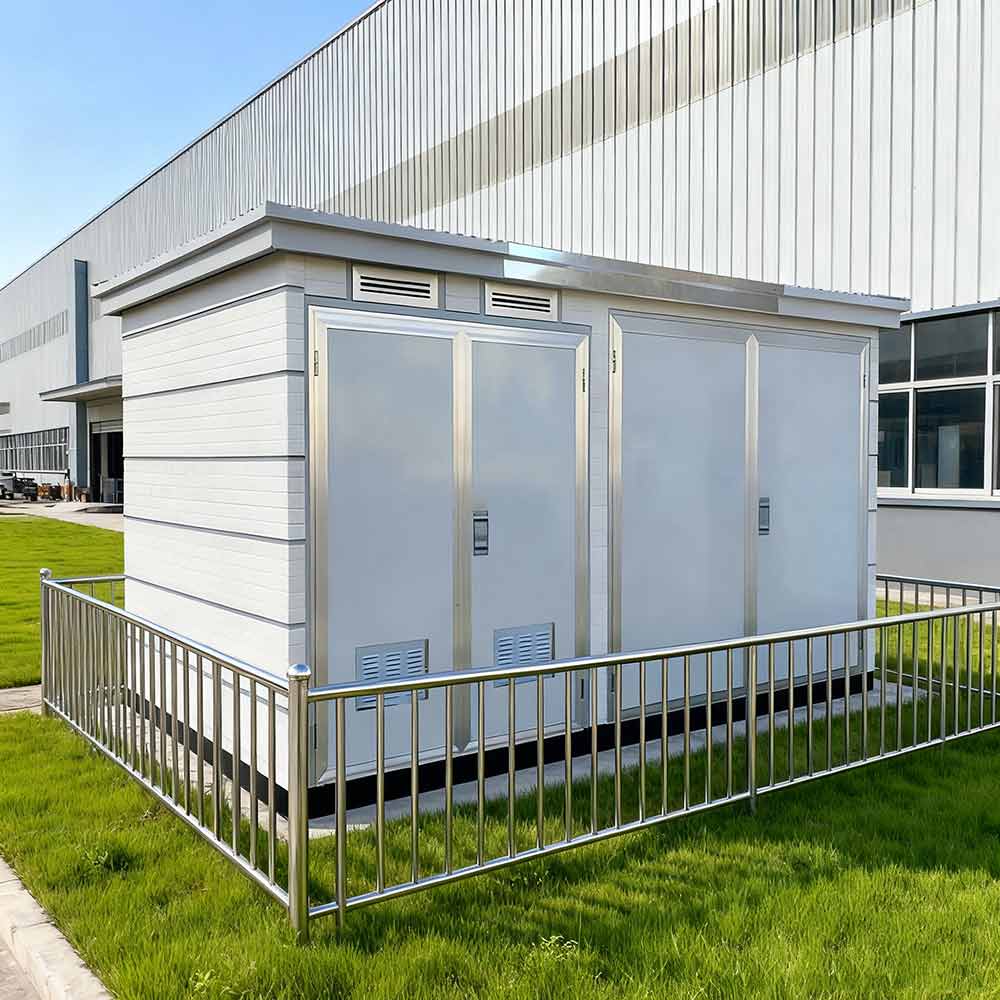

Industrial Parks: Supplies stable power to factories, with oil-immersed transformers handling high-load fluctuations (e.g., manufacturing lines).
Commercial Complexes: Installed in underground garages or rooftop areas of malls/office buildings, saving valuable commercial space.
New Energy Projects: Integrates with solar farms or wind turbines to step down voltage for grid connection, improving energy transmission efficiency.
Temporary Power: Deployed in construction sites or disaster-stricken areas to deliver fast, temporary electricity.

Key Considerations for Box Transformer Substation Selection

To maximize the value of a Box Transformer Substation, consider these factors when choosing a unit:

Match Load Capacity: Calculate the actual power demand (e.g., total households in a community, machinery in a factory) to select a transformer with appropriate capacity (avoid overcapacity or overload).
Choose Protection Ratings: Opt for IP65 for dusty, rainy outdoor environments; IP54 is sufficient for sheltered areas (e.g., building basements).
Prioritize Intelligence: Select models with remote monitoring (e.g., 4G/5G connectivity) and fault alarm functions to simplify maintenance.
Verify Manufacturer Qualifications: Choose suppliers that comply with IEC or GB standards, and provide after-sales support (e.g., on-site maintenance).

Conclusion

As power systems trend toward intelligence, miniaturization, and efficiency, the Compact Box Transformer Substation has become a cornerstone of modern power distribution. Its compact design, rapid deployment, and reliable performance address the key pain points of traditional substations, making it indispensable for urban development, industrial upgrading, and new energy integration. For businesses and utilities seeking cost-effective, space-saving power solutions, Box Transformer Substation is a proven, future-ready choice.
