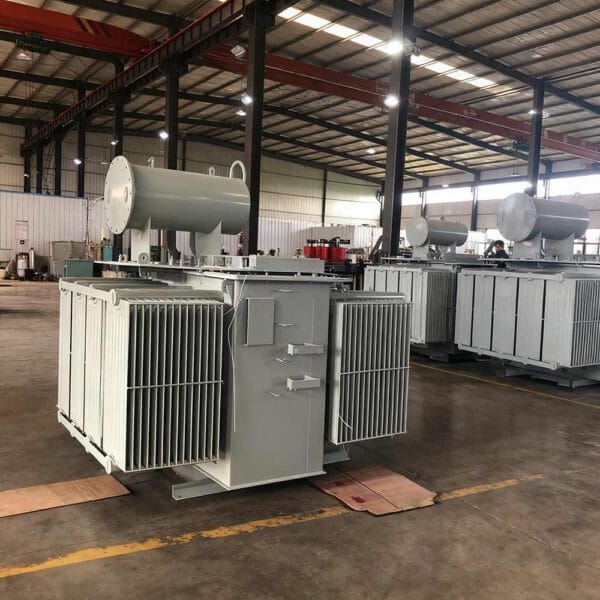

Overview of 2000 kVA Oil Filled Transformer

Why the 2000 kVA Oil Filled Transformer Excels for Indoor MV/LV Systems

Our hermetically sealed, oil-immersed 2000 kVA transformer is built to address the unique challenges of indoor installation, where space efficiency, cooling reliability, and long-term durability are non-negotiable:

Hermetic Sealing for Maximum Protection: Unlike non-sealed transformers, this unit’s airtight design prevents moisture, dust, and contaminants from entering the oil-filled core and windings. This not only extends the transformer’s lifespan (reducing oil degradation and corrosion) but also eliminates the need for frequent oil sampling or top-ups—cutting maintenance costs for your MV/LV distribution system.
ONAN Natural Cooling for Indoor Compatibility: Engineered with natural (ONAN) cooling (Oil Natural/Air Natural), the 2000 kVA oil filled transformer operates efficiently without relying on external fans or pumps. This makes it ideal for indoor spaces where forced cooling systems might be impractical or pose noise concerns, while still maintaining stable operating temperatures even under full 2000 kVA load.
Tailored for Three-Phase MV/LV Distribution: Every component—from the copper windings to the high-grade insulating oil—is optimized for three-phase power flow, ensuring consistent voltage regulation and low energy losses. Whether powering manufacturing equipment, commercial buildings, or data centers, this transformer delivers the steady, safe power your MV/LV system requires.

Key Benefits for Your Indoor Power Infrastructure

Choosing the right 2000 kVA oil filled transformer isn’t just about meeting capacity needs—it’s about enhancing your entire distribution system’s performance:

Space-Saving Design: Compact dimensions fit seamlessly into indoor electrical rooms or tight infrastructure spaces, without compromising on cooling efficiency.
Compliance with Global Standards: Manufactured to adhere to IEC, ANSI, and other industry benchmarks, ensuring compatibility with existing MV/LV setups and regulatory compliance.
Low Total Cost of Ownership: Hermetic sealing and ONAN cooling reduce maintenance labor and replacement parts, while low energy losses lower long-term utility costs.

Ready to Optimize Your Indoor MV/LV Distribution?

If your three-phase MV/LV system requires a reliable, low-maintenance power core for indoor use, the 2000 kVA oil filled transformer (hermetically sealed, ONAN-cooled) is the solution you need. Our team can customize specifications—from voltage ratings to terminal configurations—to match your exact application.

Contact us today to request a quote, technical datasheet, or personalized consultation for your 2000 kVA oil filled transformer needs. Power your indoor distribution system with confidence.

Advantages of 2000 kVA Oil Filled Transformer

Flexible standard adaptation: Supports international standards such as GB, IEC, and UL, with customization available based on customer requirements;

Multi-national authoritative certifications: Certified by ISO, CE, UL, etc., ensuring reliable quality;

High efficiency: Exceeds 99% efficiency, complying with the European Tier 2 energy efficiency regulation (2015/2014/548/EC) for excellent energy savings;

Maintenance-free operation: Features IP65 protection class for dust and moisture resistance, with a design life of over 25 years for hassle-free use;

Environmental friendliness: Optional FR3 vegetable oil, meeting environmental protection and sustainable development needs;

Strong overload capacity: Copper coil design allows short-term overload up to 150% of rated capacity (maximum 2 hours), with only oil temperature monitoring required (≤95℃).

2000 KVA Transformer Specification

Rated Power	2000KVA
Rated Voltage	10/0.4kV
Current Rating	115.5/2886.8A
Frequency	50Hz
Phase number	three phase
Tap Changer	±2X2.5%
Vector Group	Dyn11
Cooling Method	AN/AF
2000 KVA Transformer Full Load Current	2886.8A
2000 KVA Transformer Impedance	4.98%
2000 KVA Transformer Losses
No Load Losses Of 2000 KVA Transformer	2590W
Load Loss	16300W
Insulation Level	HV LI75/AC35kV
	LV AC5kV
2000 KVA Transformer Weight	5135kg
2000 KVA Transformer Dimensions	175011001860mm

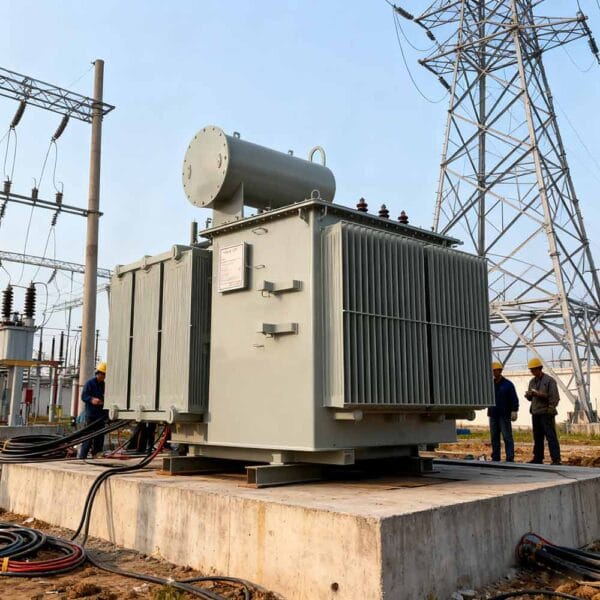

2000 kVA Oil Filled Transformer Case Display

This case display offers a clear, targeted showcase of the 2000 kVA oil-filled transformer. It highlights the equipment’s robust structural design, efficient heat dissipation (a core benefit of oil-filled technology), and reliable long-term operation. Additionally, it outlines the transformer’s adaptability to key scenarios—including industrial power distribution, large commercial complexes, and critical infrastructure projects—helping viewers quickly grasp its practical application value for meeting high-demand stable power needs.

2000 kVA Oil Filled Transformer Business Cooperation

2000 kVA Oil Filled Transformer Business Cooperation focuses on forging mutually beneficial partnerships around this high-performance power equipment. This transformer stands out with efficient energy transmission, stable long-term operation, and strong adaptability—ideal for industrial power distribution, large-scale infrastructure projects, and big commercial complexes. We provide tailored solutions, professional technical guidance, and reliable after-sales support to partners, ensuring alignment with their project needs. The cooperation aims to drive mutual growth while delivering robust, cost-effective power solutions to meet global clients’ high-power demands.
