For power utilities, industrial facilities, and energy providers—especially in regions with unique environmental and operational challenges—prioritizing power transformer maintenance is not just a best practice; it’s a strategic investment in grid resilience, cost savings, and uninterrupted power supply. In this comprehensive guide, we’ll delve into the fundamental principles, actionable steps, and specialized considerations of power transformer maintenance, equipping you with the knowledge to optimize performance, extend service life, and mitigate risks.
Transformers are designed to operate reliably for decades, but their longevity and performance depend heavily on how well they are maintained. Unlike many other electrical components, transformers are often installed in harsh environments—exposed to extreme temperatures, humidity, dust, corrosive substances, and voltage fluctuations—all of which can accelerate wear and compromise functionality over time. Neglecting maintenance can lead to a cascade of issues, from minor inefficiencies to catastrophic failures that disrupt entire power networks.
- Unexpected Downtime: A transformer failure can take days or weeks to resolve, leading to lost productivity for industries, disrupted services for communities, and significant revenue losses for power providers. For example, a manufacturing plant relying on a dedicated transformer may face production halts costing thousands of dollars per hour.
- Increased Repair Costs: Minor issues, such as oil leaks or loose connections, are relatively inexpensive to fix when detected early. However, if left unaddressed, these problems can escalate into major faults—such as insulation breakdown or winding damage—that require costly replacements or overhauls.
- Safety Hazards: Faulty transformers pose serious safety risks, including electrical shocks, fires, and explosions. Insulation degradation, for instance, can lead to arcing, which may ignite transformer oil and spread to surrounding equipment.
- Reduced Efficiency: As transformers age or deteriorate, their energy efficiency declines, leading to higher power losses and increased operational costs. A poorly maintained transformer can waste up to 5% of the electricity it processes, adding up to substantial energy costs over time.
- Grid Instability: Transformers are integral to voltage regulation and power flow control. A failed or underperforming transformer can cause voltage sags, surges, or blackouts, destabilizing the entire power grid and affecting thousands of end-users.
By implementing a structured maintenance program, organizations can unlock numerous long-term benefits:
- Extended Service Life: Regular maintenance can extend a transformer’s operational life by 10–20 years, delaying the need for costly replacements.
- Enhanced Reliability: Proactive inspections and repairs reduce the likelihood of unexpected failures, ensuring consistent performance even in demanding conditions.
- Improved Efficiency: Well-maintained transformers operate at peak efficiency, minimizing energy losses and lowering utility bills.
- Compliance with Industry Standards: Many regions—including African countries adhering to IEC (International Electrotechnical Commission) or local regulatory standards—require regular transformer maintenance to ensure safety and environmental compliance.
- Lower Total Cost of Ownership (TCO): While maintenance requires an initial investment, the savings from avoided downtime, reduced repairs, and improved efficiency far outweigh the costs over the transformer’s lifecycle.
Effective transformer maintenance is not a one-time task but a continuous process guided by three core principles: proactivity, regularity, and specificity. A successful maintenance program is tailored to the transformer’s type, age, operating conditions, and criticality to the power system. Below, we break down the key components of a comprehensive maintenance strategy.
Visual and mechanical inspections are the foundation of transformer maintenance, as they allow technicians to identify visible issues before they escalate. These inspections should be conducted by trained professionals with a deep understanding of transformer design and operation.
- Daily/Weekly Checks: For transformers in critical applications (e.g., power generation plants, large industrial facilities), daily or weekly visual checks are recommended to monitor for immediate issues.
- Monthly/Quarterly Inspections: For most commercial and utility transformers, monthly or quarterly inspections are sufficient to track performance and detect early signs of wear.
- Annual Comprehensive Inspections: A thorough annual inspection involves detailed checks of all components, including internal parts (when accessible) and auxiliary systems.

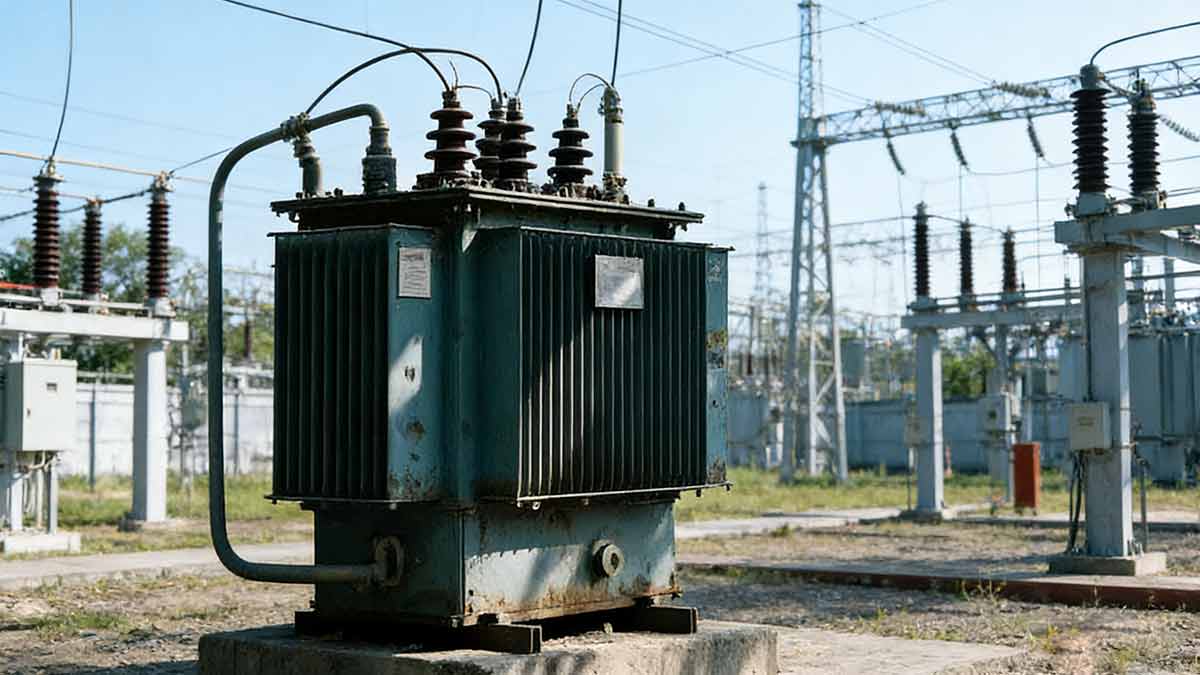

- Exterior Condition: Check for signs of physical damage, such as dents, cracks, or corrosion on the tank, cover, and bushings. Corrosion is particularly common in coastal regions of Africa, where saltwater mist can accelerate metal degradation.
- Oil Leaks: Inspect the tank seams, valve connections, and oil level gauge for leaks. Even small leaks can lead to low oil levels, compromising insulation and cooling.
- Bushings: Examine bushings for cracks, discoloration, or contamination (e.g., dust, oil residue). Damaged bushings can cause arcing or flashovers, leading to transformer failure.
- Connections: Verify that all electrical connections (e.g., terminal blocks, busbars) are tight and free from corrosion. Loose connections generate heat, which can damage insulation and increase energy losses.
- Cooling System: For oil-immersed transformers, check the cooling fans, radiators, or heat exchangers for debris buildup, damage, or proper operation. A malfunctioning cooling system can cause overheating, which is a leading cause of transformer failure.
- Pressure Relief Devices: Inspect pressure relief valves or rupture discs to ensure they are functioning correctly. These devices protect the transformer from excessive internal pressure caused by overheating or arcing.
- Instrumentation: Check that meters (e.g., oil temperature gauge, winding temperature gauge, pressure gauge) are calibrated and provide accurate readings. Inaccurate instrumentation can mask underlying issues.
The majority of power transformers are oil-immersed, relying on transformer oil for three critical functions: insulation (preventing electrical arcing), cooling (dissipating heat), and arc suppression (quenching arcs during fault conditions). The quality and level of transformer oil directly impact the transformer’s performance and lifespan.
Transformer oil levels can decrease over time due to leaks, evaporation, or normal consumption. Low oil levels expose the windings and core to air, increasing the risk of insulation breakdown and overheating.
- Monitoring Oil Levels: Check the oil level gauge regularly (daily or weekly for critical transformers) to ensure it remains within the manufacturer’s recommended range. The oil level should be high enough to fully immerse the windings and core.
- Topping Up Oil: If the oil level is low, top it up with the same type of transformer oil (e.g., mineral oil, synthetic oil) specified by the manufacturer. Never mix different types of oil, as this can degrade oil quality and compromise insulation.
- Addressing Leaks: If a leak is detected, identify and repair the source immediately. Common leak points include valve stems, gasket seals, and tank welds. Temporary fixes (e.g., sealants) can be used in emergencies, but permanent repairs are essential for long-term reliability.
Transformer oil degrades over time due to oxidation, moisture absorption, and contamination by particles, dissolved gases, and acidic byproducts. Oil testing is a critical tool for assessing the condition of the transformer and detecting internal issues that may not be visible during inspections.
- Dissolved Gas Analysis (DGA): This test measures the concentration of gases (e.g., methane, ethane, ethylene, acetylene) dissolved in the oil. Different types of faults (e.g., overheating, arcing, partial discharge) produce specific gas signatures. For example, high levels of acetylene indicate arcing, while elevated methane and ethane suggest overheating. DGA is often performed quarterly or semi-annually for critical transformers.
- Moisture Content Test: Moisture in transformer oil reduces its insulation resistance, increasing the risk of electrical breakdown. The acceptable moisture level varies by transformer type but typically ranges from 10–30 ppm (parts per million) for new oil. Moisture testing should be conducted at least annually.
- Acidity Test: Oxidation of transformer oil produces acidic compounds that corrode metal components and degrade insulation. The acidity level (measured as total acid number, TAN) should be kept below 0.2 mg KOH/g. If TAN exceeds this threshold, the oil may need to be treated or replaced.
- Insulation Resistance Test: This test measures the oil’s ability to resist electrical current. A drop in insulation resistance indicates contamination or degradation. The test is often performed in conjunction with winding insulation resistance tests.
- Particle Count Test: Contaminants such as dust, metal particles, or sludge can scratch insulation and cause abrasion. The particle count test ensures that the oil remains clean, with particle levels meeting industry standards (e.g., ISO 4406).
- Oil Filtration: If the oil is contaminated with particles or moisture but otherwise in good condition, filtration (using vacuum dehydrators or oil filters) can remove impurities and restore oil quality.
- Oil Regeneration: For oil with high acidity or oxidation levels, regeneration processes (e.g., clay treatment, vacuum distillation) can remove acidic compounds and extend the oil’s lifespan.
- Oil Replacement: If the oil is severely degraded (e.g., high moisture, excessive acidity, or presence of harmful gases), complete replacement is necessary. When replacing oil, ensure the new oil meets the manufacturer’s specifications and is properly degassed and dehydrated before use.
The insulation system—comprising paper, pressboard, and other dielectric materials—protects the transformer’s windings and core from electrical breakdown. Insulation degradation is a major cause of transformer failure, often triggered by heat, moisture, voltage stress, or chemical contamination.
- Insulation Resistance Testing: This test measures the resistance of the insulation to electrical current, helping to detect moisture, contamination, or degradation. The test is performed using a megohmmeter, and results are compared to baseline values (taken when the transformer is new or in good condition). A significant drop in insulation resistance indicates a problem that requires further investigation.
- Polarization Index (PI) Test: The PI test is a more detailed insulation test that measures the ratio of insulation resistance at 10 minutes to the resistance at 1 minute. A PI value greater than 2.0 indicates good insulation condition, while a value less than 1.5 suggests degradation.
- Monitoring for Insulation Deterioration: During inspections, look for signs of insulation damage, such as:
- Cracking, swelling, or discoloration of paper insulation on windings or leads.
- Oil discoloration or the presence of sludge (indicating insulation breakdown products).
- Partial discharge (visible as blue sparks or corona) around bushings or connections.
- Controlling Operating Temperature: Excessive heat accelerates insulation aging. Ensure the transformer’s cooling system is functioning properly, and avoid overloading the transformer beyond its rated capacity. Most transformers are designed to operate at a maximum top oil temperature of 90°C, with a maximum winding temperature of 110°C.
- Preventing Moisture Ingress: Moisture is one of the most damaging factors for insulation. Seal all openings (e.g., manholes, valve covers) tightly, and ensure the transformer’s breather (silica gel) is in good condition. Silica gel absorbs moisture from the air entering the transformer, and it should be replaced when it turns from blue to pink.
Proper grounding is essential for transformer safety and performance. A well-designed grounding system protects personnel from electrical shocks, diverts fault currents away from equipment, and prevents voltage surges that can damage the transformer and other grid components.
- Inspecting Ground Connections: Regularly check the transformer’s grounding electrodes, conductors, and connections for corrosion, loose bolts, or damage. Corroded or loose connections can increase ground resistance, reducing the effectiveness of the grounding system.
- Testing Ground Resistance: Ground resistance should be measured annually using a ground resistance tester. The acceptable ground resistance value varies by application, but is typically less than 5 ohms for power transformers. If the resistance is too high, additional grounding electrodes may be required, or existing electrodes may need to be cleaned or replaced.
- Verifying Bonding Connections: Ensure that all metal components of the transformer (e.g., tank, frame, cooling system) are properly bonded to the grounding system. Bonding prevents the formation of dangerous voltage differences between components during faults.
- Protecting Against Lightning and Surges: In regions prone to lightning (such as many parts of Africa), install surge arresters (lightning arresters) to protect the transformer from transient voltage surges. Surge arresters should be inspected annually for damage and tested to ensure they are functioning correctly.
Transformers generate significant heat during operation, and the cooling system is responsible for dissipating this heat to maintain safe operating temperatures. A malfunctioning cooling system can lead to overheating, which accelerates insulation aging and increases the risk of failure.

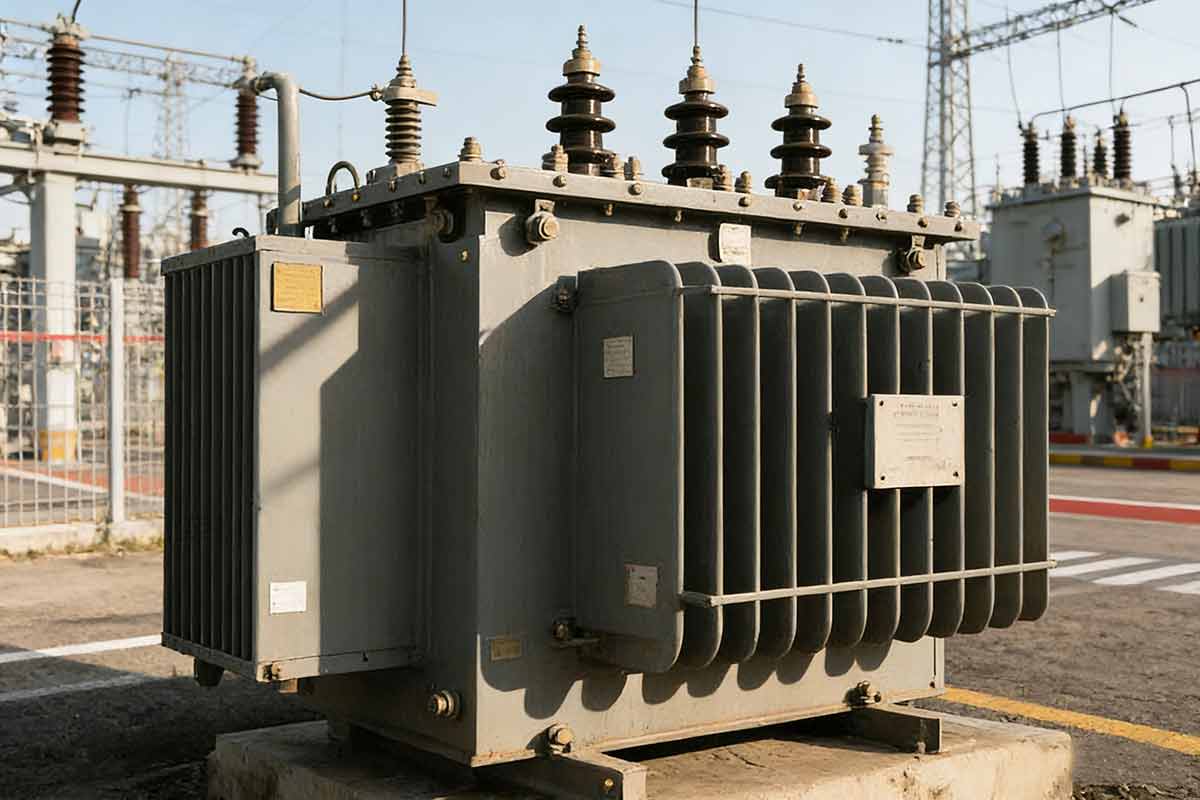

Natural Cooling (ONAN): Oil-immersed transformers with natural cooling rely on convection to circulate oil through radiators. Maintenance involves:
- Cleaning radiators regularly to remove dust, dirt, and debris that block airflow.
- Inspecting radiator fins for damage (e.g., bending, corrosion) that can reduce cooling efficiency.
- Checking for oil leaks in radiator tubes or connections.
Forced Air Cooling (ONAF): These transformers use fans to blow air over the radiators, enhancing heat dissipation. Maintenance includes:
- Testing fan motors regularly to ensure they start and run smoothly.
- Cleaning fan blades and motor housings to remove debris.
- Inspecting fan wiring and connections for damage or corrosion.
- Replace worn or faulty fans immediately to avoid overheating.
Forced Oil Cooling (OFAF/OFAN): Large transformers may use pumps to circulate oil through coolers (air or water-cooled). Maintenance involves:
- Checking pump operation (flow rate, pressure) to ensure adequate oil circulation.
- Inspecting pump seals for leaks.
- Cleaning strainers and filters to prevent blockages.
- For water-cooled systems, checking water quality (pH, conductivity) and ensuring proper water flow.
Overloading a transformer—operating it beyond its rated capacity—can cause excessive heat, accelerate insulation aging, and increase the risk of failure. While transformers can withstand short-term overloads (e.g., during peak demand), prolonged overloading is a major contributor to premature failure.
- Monitor Load Levels: Use metering equipment to track the transformer’s load (current, power) and ensure it stays within rated limits. Most transformers have a nameplate indicating their rated kVA, voltage, and current.
- Plan for Peak Demand: During periods of high power demand (e.g., hot weather, holidays), distribute the load across multiple transformers to avoid overloading any single unit.
- Avoid Unbalanced Loads: Three-phase transformers are sensitive to unbalanced loads, which can cause overheating of windings and reduce efficiency. Ensure that the load is evenly distributed across all three phases.
- Implement Load Shedding: In cases of extreme demand, use load shedding (temporarily disconnecting non-critical loads) to reduce the transformer’s load and prevent overheating.
Africa’s unique environmental, climatic, and infrastructure conditions present specific challenges for transformer maintenance. Understanding these challenges and adapting maintenance practices accordingly is essential for ensuring reliable transformer operation in the region.
Extreme Temperatures: Many parts of Africa experience high ambient temperatures (often exceeding 35°C) for extended periods. High temperatures increase transformer cooling requirements and accelerate insulation aging. To mitigate this:
- Install transformers in shaded areas or use heat shields to reduce direct sunlight exposure.
- Upgrade cooling systems (e.g., add extra fans, use larger radiators) to handle high ambient temperatures.
- Increase the frequency of temperature monitoring and oil testing.
Humidity and Moisture: Tropical regions of Africa (e.g., West Africa, Central Africa) have high humidity levels, which increase the risk of moisture ingress into transformers. To address this:
- Use high-quality seals and gaskets to prevent moisture from entering the transformer tank.
- Replace silica gel breathers more frequently (every 3–6 months) to maintain moisture absorption capacity.
- Conduct moisture testing of transformer oil more regularly (every 3–6 months).
Dust and Contamination: Arid regions (e.g., North Africa, Southern Africa) are prone to dust storms, which can deposit large amounts of dust on transformer radiators, bushings, and connections. Dust buildup blocks airflow (reducing cooling efficiency) and can cause electrical tracking on bushings. To mitigate this:
- Clean radiators, bushings, and connections more frequently (monthly or quarterly).
- Use dust covers for transformers installed in dusty areas.
- Inspect bushings regularly for dust buildup and clean them with a dry cloth or compressed air.
Corrosion: Coastal regions (e.g., East Africa, West Africa) are exposed to saltwater mist, which causes rapid corrosion of metal components. To prevent corrosion:
- Use corrosion-resistant materials (e.g., stainless steel, galvanized steel) for transformer components.
- Apply anti-corrosion coatings to the transformer tank and frame.
- Increase the frequency of inspections for corrosion, especially in coastal areas.
Limited Access to Spare Parts: In remote areas of Africa, accessing spare parts (e.g., fans, pumps, bushings, transformer oil) can be difficult and time-consuming. To address this:
- Stock critical spare parts at local facilities or partner with regional suppliers.
- Use standardized transformer components to simplify spare part sourcing.
- Conduct regular inventory checks to ensure spare parts are available when needed.
Power Outages and Unstable Grid: Frequent power outages and voltage fluctuations are common in many African countries, which can stress transformers when power is restored. To mitigate this:
- Install voltage regulators or surge protectors to stabilize voltage.
- Implement proper startup procedures after power outages (e.g., gradual loading) to avoid sudden surges.
- Monitor transformer performance closely after power restoration to detect any issues.
Lack of Skilled Technicians: In some regions, there is a shortage of trained transformer maintenance technicians. To address this:
- Invest in training programs for local technicians, partnering with industry associations or manufacturers.
- Hire certified technicians from regional or international firms for complex maintenance tasks.
- Develop detailed maintenance manuals and standard operating procedures (SOPs) to guide on-site personnel.
Many African countries have adopted IEC standards for transformer design, installation, and maintenance. Compliance with these standards is essential for ensuring safety, environmental protection, and grid compatibility. Key regulatory considerations include:
- Safety Standards: Transformers must meet IEC 60076 (Power Transformers) standards for electrical safety, insulation, and temperature rise.
- Environmental Standards: Proper disposal of used transformer oil (which is classified as hazardous waste) is required under international and local regulations. Used oil should be collected by licensed waste management companies for recycling or safe disposal.
- Certification: Transformers may require certification from local regulatory bodies (e.g., Nigerian Electricity Regulatory Commission, Kenyan Energy and Petroleum Regulatory Authority) before installation and operation.
Organizations often face the decision of whether to perform transformer maintenance in-house or outsource it to a professional service provider. The choice depends on several factors, including the complexity of the maintenance tasks, the availability of skilled personnel, and the criticality of the transformer.
- Cost Savings: In-house maintenance can reduce labor costs, especially for routine tasks (e.g., visual inspections, oil level checks).
- Quick Response: On-site personnel can address minor issues immediately, minimizing downtime.
- Familiarity with Equipment: In-house technicians have intimate knowledge of the organization’s transformers and operating conditions.
- Expertise and Experience: Professional service providers have certified technicians with specialized training in transformer maintenance. They are equipped to handle complex tasks (e.g., DGA, insulation testing, winding repairs) and can identify issues that may be missed by in-house personnel.
- Advanced Equipment: Professional firms invest in state-of-the-art testing equipment (e.g., DGA analyzers, insulation resistance testers, thermal imaging cameras) that may be too costly for organizations to purchase.
- Compliance Assurance: Professional maintenance ensures that all tasks are performed in accordance with industry standards and regulatory requirements, reducing the risk of non-compliance penalties.
- Reduced Liability: Outsourcing maintenance transfers the risk of accidents or errors to the service provider, protecting the organization from liability.
For most organizations, a hybrid approach is optimal:
- In-House Maintenance: Handle routine tasks such as daily visual inspections, oil level checks, and basic cleaning.
- Professional Maintenance: Outsource complex tasks such as DGA, insulation testing, cooling system repairs, and major overhauls.
Additionally, organizations should partner with a professional service provider for annual comprehensive inspections to ensure all maintenance tasks are completed to the highest standards.
A well-defined maintenance schedule ensures that all critical tasks are performed on time, preventing gaps in maintenance coverage. Below is a sample maintenance schedule for power transformers, tailored to the needs of African users:
A large utility company in East Africa operates a fleet of 50 power transformers across its distribution network. Prior to implementing a structured maintenance program, the company experienced an average of 8 transformer failures per year, resulting in 160 hours of downtime and $2 million in annual repair and replacement costs.
In 2020, the company partnered with a professional maintenance service provider to develop a customized maintenance program, including:
- Weekly visual inspections and oil level checks by in-house technicians.
- Semi-annual DGA and insulation resistance testing.
- Annual comprehensive inspections and oil testing.
- Cooling system overhauls every 3 years.
Within two years, the number of transformer failures dropped to 2 per year, reducing downtime to 40 hours and cutting repair costs by 60% (to $800,000 per year). Additionally, the average service life of the transformers increased from 15 to 25 years, delaying the need for costly replacements.
This case study demonstrates the significant impact of proactive maintenance on transformer reliability, cost savings, and grid stability—especially in regions with challenging operating conditions.
As technology advances, transformer maintenance is becoming more efficient, data-driven, and predictive. Below are key trends shaping the future of transformer maintenance:
Predictive maintenance uses data from sensors, meters, and testing equipment to predict when maintenance is needed, rather than performing tasks on a fixed schedule. By analyzing real-time data (e.g., temperature, vibration, oil quality, dissolved gas levels), organizations can identify potential issues before they lead to failures.
For example, sensors installed in transformers can monitor winding temperature, oil moisture, and vibration levels, transmitting data to a central platform for analysis. Machine learning algorithms can detect anomalies and alert technicians to potential problems, allowing for targeted maintenance.
Remote monitoring technology enables technicians to monitor transformer performance from a distance, eliminating the need for on-site inspections in remote or hard-to-reach locations. This is particularly beneficial in Africa, where many transformers are installed in rural areas with limited access.
Remote monitoring systems can track key parameters (e.g., oil temperature, load level, gas levels) and send alerts via SMS or email if issues are detected. Technicians can then dispatch teams only when necessary, reducing travel costs and improving response times.
A digital twin is a virtual replica of a physical transformer, created using 3D modeling and real-time data. Digital twins allow technicians to simulate maintenance tasks, test the impact of changes (e.g., load adjustments, cooling system upgrades), and predict future performance.
For example, a digital twin can simulate the effect of a cooling fan failure on transformer temperature, helping technicians determine the best course of action. Digital twins also facilitate knowledge sharing and training, allowing technicians to practice complex maintenance tasks in a virtual environment.
As environmental regulations become stricter, there is a growing focus on eco-friendly maintenance practices. This includes:
- Using biodegradable transformer oil (e.g., vegetable-based oil) as an alternative to mineral oil.
- Recycling used transformer oil reduces waste.
- Implementing energy-efficient cooling systems to reduce carbon emissions.
Power transformer maintenance is a critical component of ensuring reliable, efficient, and safe power supply—especially in regions like Africa, where transformers face unique environmental and operational challenges. By implementing a structured, proactive maintenance program that includes regular inspections, oil testing, insulation maintenance, grounding checks, and cooling system upkeep, organizations can extend transformer service life, reduce downtime, and lower the total cost of ownership.
Whether performed in-house, outsourced to professionals, or managed through a hybrid approach, maintenance should be tailored to the transformer’s specific needs and operating conditions. By embracing emerging trends such as predictive maintenance and remote monitoring, organizations can further enhance the effectiveness of their maintenance programs, ensuring that transformers continue to play a vital role in powering Africa’s growth and development.
Remember, the cost of maintenance is always lower than the cost of failure. Investing in regular, high-quality maintenance is not just a practical decision—it’s a commitment to the reliability and resilience of your power system.
