Power Transformer Installation: A Comprehensive Guide for Safe and Efficient Setup?
Power transformers serve as the backbone of electrical infrastructure, enabling the seamless transmission of electrical energy between locations by adjusting voltage levels to meet operational requirements. From industrial power plants to municipal substations, these heavy-duty electrical assets are indispensable for maintaining a stable power supply. However, their functionality and longevity hinge entirely on one critical process: power transformer installation.
Many facility managers and project engineers often overlook the complexity of this process, treating it as a routine task rather than a specialized undertaking. The truth is, power transformer installation is a multi-faceted operation that demands rigorous planning, technical expertise, and adherence to industry standards. A flawed installation not only compromises the transformer’s performance but also poses significant safety hazards, including electrical fires, equipment damage, and unplanned downtime that can cripple business operations.
Contents
hide
In this guide, we address the most pressing questions surrounding power transformer installation, providing authoritative insights to help you navigate the process safely, efficiently, and in compliance with global electrical codes. Whether you’re overseeing a new power plant project or upgrading an existing substation, this article will equip you with the knowledge to avoid common pitfalls and ensure your transformer delivers reliable service for decades.
Key Considerations Before Embarking on Power Transformer Installation
Before you begin the physical installation of a power transformer, several foundational considerations must be addressed to lay the groundwork for success. Rushing into installation without resolving these critical factors is a recipe for costly delays and errors. Below are the core pre-installation questions and their authoritative answers.
Site Suitability Assessment for Power Transformer Installation
One of the first and most crucial steps in power transformer installation is evaluating whether the chosen site can support the transformer’s operational and physical requirements. Many clients wonder: “What makes a site suitable for power transformer installation?” The answer extends beyond mere space availability—it encompasses structural, environmental, and logistical factors.
First, the site must be free of obstructions that could hinder installation or pose risks to the transformer. This includes removing or relocating nearby trees, temporary structures, or utility lines that might interfere with crane access or the transformer’s ventilation. Ventilation is particularly critical; transformers generate heat during operation, so the site must allow for adequate air circulation to prevent overheating. A minimum clearance of 3 meters from any surrounding structures is recommended by industry standards such as IEEE C57.12.00.
Second, the site’s load-bearing capacity is non-negotiable. Power transformers can weigh anywhere from a few tons to hundreds of tons, depending on their kVA rating. A geotechnical survey is essential to assess soil stability and determine if the ground can support the transformer’s weight, both during installation and long-term operation. If the soil is weak or prone to settlement, additional measures such as soil compaction or pile foundations may be required to prevent structural failure.
Finally, environmental factors must be considered. The site should be protected from flooding (ideally above the 100-year flood level) and extreme weather conditions. For outdoor installations, proper drainage systems are necessary to divert rainwater away from the transformer and its foundation. Additionally, the site should be located away from corrosive environments (such as industrial areas with high chemical emissions) or areas with excessive dust, which can degrade the transformer’s insulation over time.
Regulatory Compliance and Permit Requirements for Power Transformer Installation
Another common client concern is: “What regulatory standards and permits are required for power transformer installation?” Compliance with local, national, and international codes is not just a legal obligation—it’s a critical component of ensuring installation safety and reliability.
In most regions, power transformer installation must adhere to standards set by organizations such as the International Electrotechnical Commission (IEC), Institute of Electrical and Electronics Engineers (IEEE), and the National Electrical Code (NEC) in the United States. These standards outline specific requirements for installation practices, electrical connections, grounding, and testing. For example, IEEE C57.12.20 specifies the requirements for liquid-immersed power transformers, including installation and commissioning procedures.
Obtaining the necessary permits is also a vital step. Depending on the location and scope of the project, you may need permits for site preparation, heavy equipment operation (such as cranes), electrical work, and environmental compliance. Failure to secure these permits can result in project delays, fines, or even the shutdown of the installation process. It’s recommended to work with a local electrical consultant or regulatory expert to ensure all permits are obtained before commencing work.
Step-by-Step Power Transformer Installation Process: Expert Guidance for Success
Once the pre-installation considerations are addressed, the actual power transformer installation process can begin. Below is a detailed, step-by-step breakdown of the process, along with expert tips to avoid common mistakes.
Foundation Preparation for Power Transformer Installation
The foundation is the unsung hero of power transformer installation—it supports the transformer’s weight and ensures stability during operation. A weak or improperly designed foundation can lead to uneven settling, which can damage the transformer’s tank, windings, and internal components.
The first step in foundation preparation is to design a foundation that matches the transformer’s specifications. The foundation’s size and depth depend on the transformer’s weight, dimensions, and the soil’s load-bearing capacity. For large transformers, a reinforced concrete foundation is typically used, as it provides the necessary strength and durability.
The foundation preparation process involves several key steps:
- Excavation: The ground is excavated to the required depth, ensuring that the excavation is level and free of debris.
- Base Preparation: A layer of compacted gravel is added to the bottom of the excavation to improve drainage and prevent soil settlement.
- Reinforcement: Steel reinforcement bars (rebars) are placed in the excavation to enhance the concrete’s tensile strength. The rebars are tied together to form a grid that matches the foundation’s design.
- Formwork Installation: Wooden or metal formwork is installed around the excavation to contain the concrete during pouring.

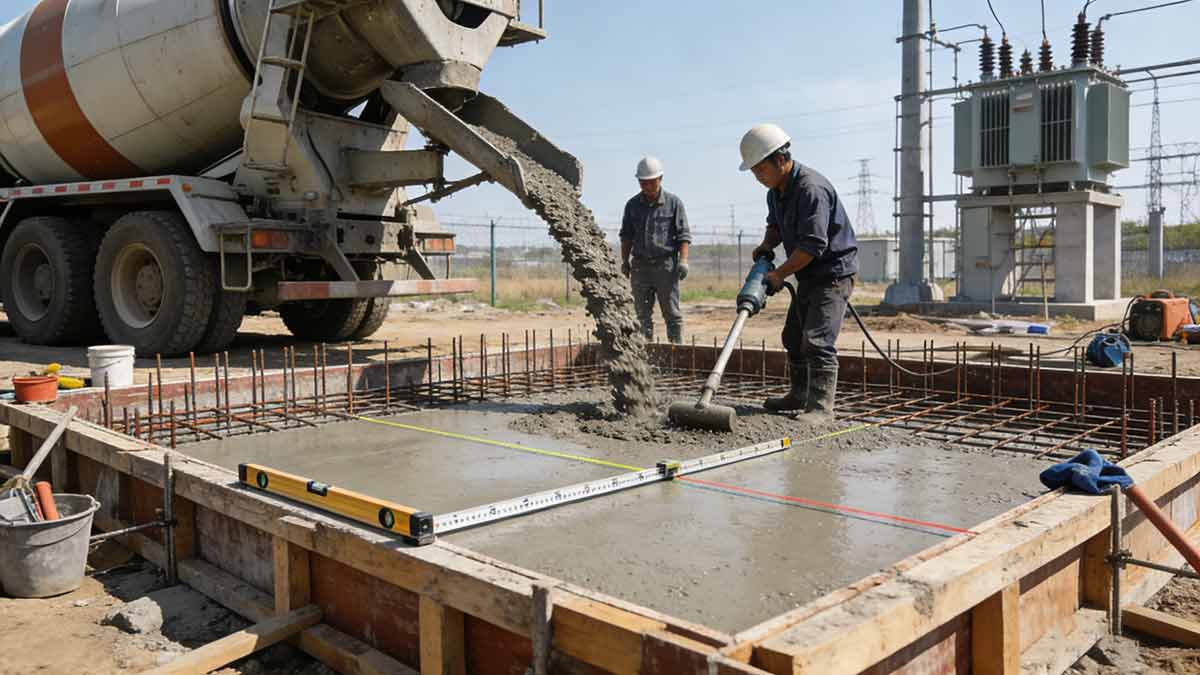

- Concrete Pouring: High-strength concrete (typically with a compressive strength of 30 MPa or higher) is poured into the formwork. The concrete is vibrated to remove air bubbles and ensure uniform compaction.
- Curing: The concrete is allowed to cure for a minimum of 28 days to achieve its full strength. During curing, the concrete is kept moist to prevent cracking.
Expert Tip: Always ensure that the foundation is perfectly level. Even a slight incline can cause stress on the transformer’s tank and internal components. Use a laser level to verify the foundation’s flatness before proceeding to the next step.
Pre-Installation Preparation for Power Transformer Installation
Before the transformer is delivered to the site, it’s essential to complete all pre-installation preparation to avoid delays. This step answers the client’s question: “What equipment and materials do I need to have ready before power transformer installation?”
The pre-installation preparation process includes:
- Equipment and Material Procurement: Gather all necessary equipment and materials, including high-voltage (HV) and low-voltage (LV) cables, cable lugs, conduits, grounding materials, control panels, and testing equipment (such as insulation resistance testers and megohmmeters).
- Equipment Inspection: Inspect all equipment and materials to ensure they meet the required specifications and are free of damage. For example, check cables for cuts, abrasions, or insulation damage, and verify that control panels are properly calibrated.
- Transformer Inspection: Before the transformer is lifted onto the foundation, conduct a thorough inspection of the transformer itself. Check the tank for leaks, verify that the windings are intact, and ensure that all accessories (such as bushings, radiators, and conservators) are properly installed and undamaged. If the transformer was shipped with a nitrogen blanket (to prevent moisture ingress), check the nitrogen pressure to ensure it’s within the recommended range.

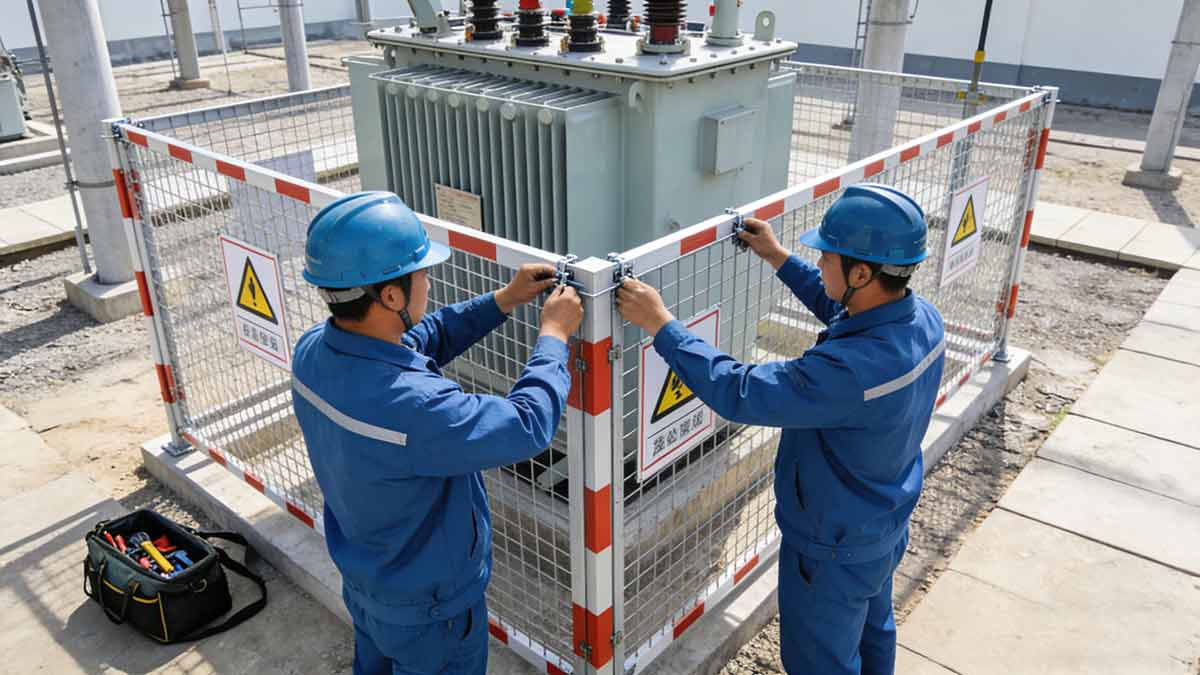

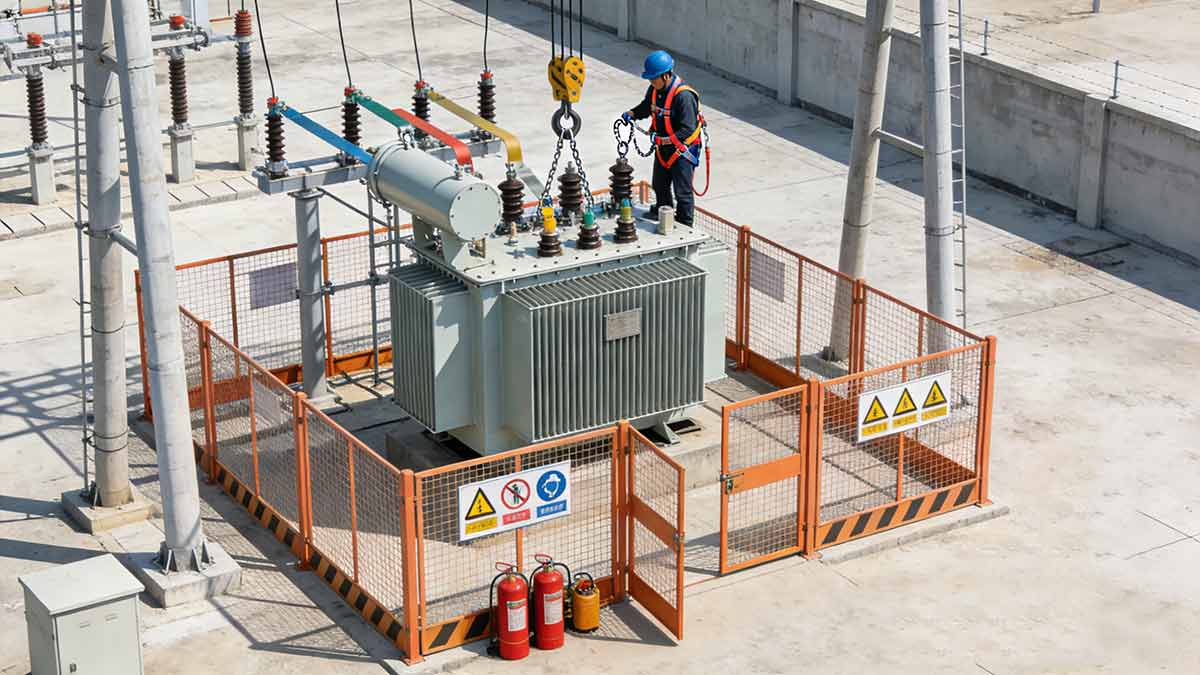

- Safety Preparation: Set up safety barriers around the installation site to prevent unauthorized access. Ensure that all workers are properly trained in safety procedures, including the use of personal protective equipment (PPE) such as hard hats, safety glasses, and gloves. Additionally, arrange for emergency response equipment (such as fire extinguishers and first aid kits) to be on-site.
Lifting and Placing the Transformer During Installation

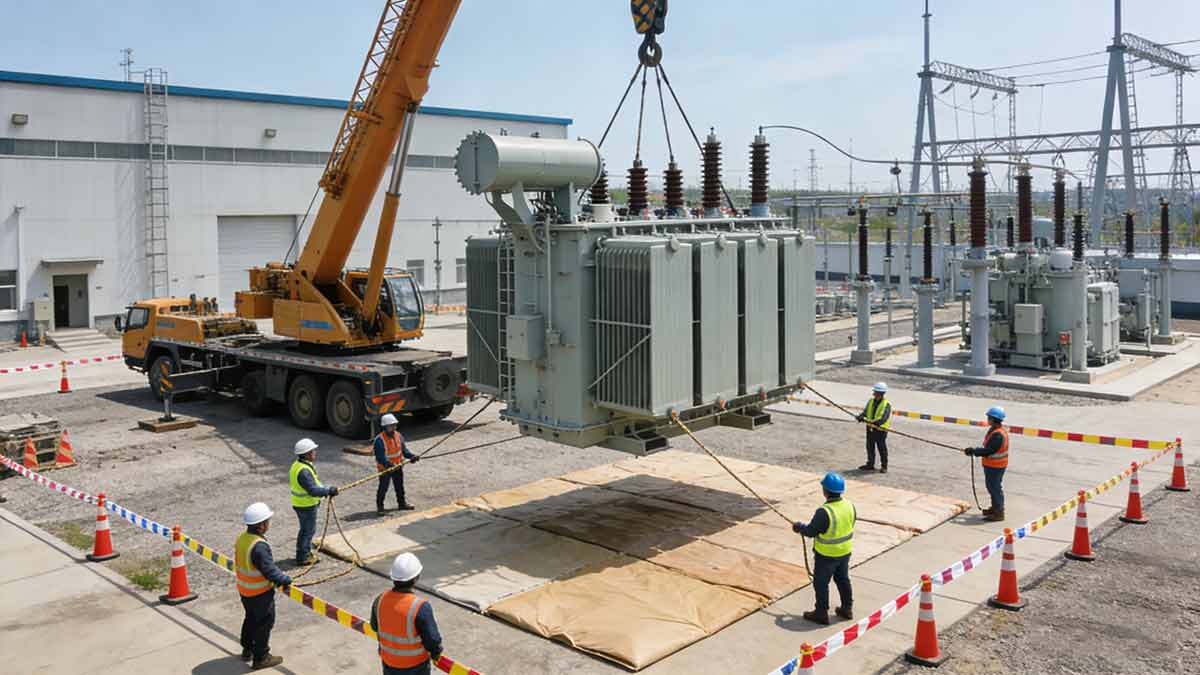

Lifting and placing the transformer is one of the most critical and high-risk steps in power transformer installation. The question on every client’s mind is: “How can I safely lift and place a heavy power transformer?”
The key to safe lifting is proper planning and the use of specialized equipment. Here’s a detailed breakdown of the process:
- Equipment Selection: Choose a crane with a lifting capacity that exceeds the transformer’s weight. The crane should be equipped with a spreader beam to distribute the weight evenly and prevent damage to the transformer’s tank. Additionally, use high-strength rigging equipment (such as slings and shackles) that is rated for the transformer’s weight.
- Lifting Plan: Develop a detailed lifting plan that outlines the lifting points, the angle of the slings, and the path of the crane. The lifting points should be clearly marked on the transformer’s tank (as specified by the manufacturer) to ensure that the weight is distributed evenly.
- Trial Lift: Before lifting the transformer to its final position, perform a trial lift. Lift the transformer a few inches off the ground and check for any signs of instability or damage. Verify that the crane and rigging equipment are functioning properly.
- Placement: Slowly lift the transformer and move it to the foundation. Ensure that the transformer is aligned correctly with the foundation’s anchor bolts. Lower the transformer gently onto the foundation, taking care not to impact the foundation or the transformer’s components.
- Securing: Once the transformer is in place, secure it to the foundation using anchor bolts. Tighten the bolts to the manufacturer’s recommended torque to ensure a secure fit.
Expert Tip: Never attempt to lift a transformer without a qualified rigging engineer. A single mistake in the lifting process can result in catastrophic damage to the transformer or injury to workers.
Electrical Connections for Power Transformer Installation
Proper electrical connections are essential for the transformer to function correctly and safely. Clients often ask: “What are the key considerations for making electrical connections during power transformer installation?”
The electrical connection process involves connecting the HV and LV cables, as well as control and monitoring equipment. Here are the key steps and considerations:
- Cable Preparation: Strip the insulation from the ends of the HV and LV cables to expose the conductors. Use a cable stripping tool to avoid damaging the conductors. Clean the conductors to remove any dirt or oxidation, which can cause poor electrical contact.
- Terminal Connection: Connect the HV cables to the transformer’s HV bushings and the LV cables to the LV bushings. Use cable lugs to secure the conductors to the terminals. Tighten the lug bolts to the manufacturer’s recommended torque to ensure a secure connection. Avoid over-tightening, as this can damage the terminals or conductors.
- Grounding: Proper grounding is critical for safety and to protect the transformer from lightning strikes and voltage surges. Connect the transformer’s tank and core to a grounding electrode using a grounding conductor. The grounding conductor should be of sufficient size (as specified by NEC or local codes) to carry fault currents safely.
- Control and Monitoring Connections: Connect the control and monitoring equipment (such as temperature gauges, oil level indicators, and fault detection devices) to the transformer. Ensure that the wiring is routed correctly and secured to prevent damage. Test the control and monitoring equipment to verify that it’s functioning properly.
Expert Tip: Use torque wrenches to ensure that all connections are tightened to the correct torque. Loose connections can cause arcing, which can lead to fires or equipment damage. Additionally, label all cables to make future maintenance easier.
Testing and Commissioning for Power Transformer Installation

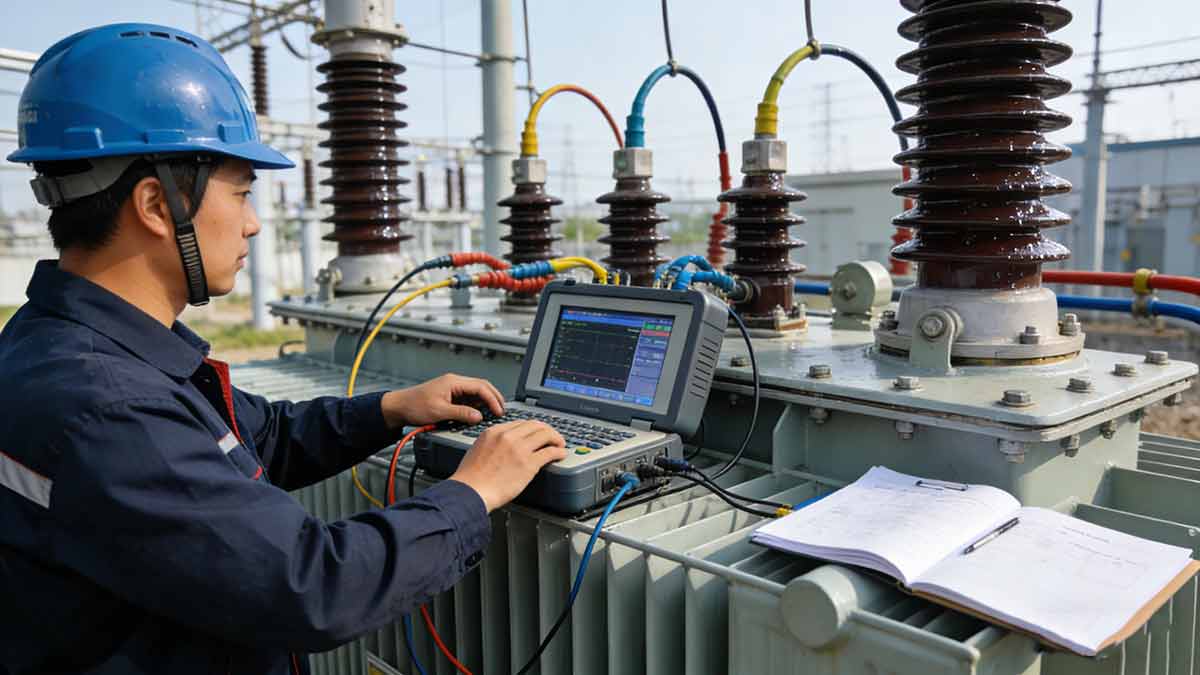

Testing and commissioning are the final steps in power transformer installation, and they are critical to verifying that the transformer is functioning correctly and safely. The question clients often ask is: “What tests are required during the commissioning of a power transformer?”
The testing and commissioning process includes the following key tests:
- Insulation Resistance Test: This test measures the resistance of the transformer’s insulation to electrical current. Use a megohmmeter to apply a high voltage (typically 5 kV or 10 kV) to the windings and measure the insulation resistance. A low insulation resistance indicates a problem with the insulation (such as moisture ingress or damage), which can lead to short circuits.
- Voltage Ratio Test: This test verifies that the transformer’s voltage ratio matches the specified value. Apply a test voltage to the primary winding and measure the voltage on the secondary winding. The ratio of the primary voltage to the secondary voltage should be within the manufacturer’s tolerance (typically ±0.5%).
- Short-Circuit Test: This test measures the transformer’s impedance and copper losses. Short-circuit the secondary winding and apply a low voltage to the primary winding. Measure the current and voltage to calculate the impedance and copper losses. This test helps to verify that the transformer can handle fault currents safely.
- Load Test: This test verifies the transformer’s performance under load conditions. Apply a load to the secondary winding and measure the voltage, current, and temperature. The transformer’s performance should be within the manufacturer’s specifications, and the temperature should not exceed the maximum allowable limit.
- Oil Analysis (for Liquid-Immersed Transformers): For liquid-immersed transformers, analyze the insulating oil to check for moisture, dissolved gases, and contaminants. Moisture in the oil can degrade the insulation, while dissolved gases (such as methane and ethane) can indicate internal faults (such as overheating or arcing).
Once all tests are completed and the transformer passes, it can be commissioned and put into service. A commissioning report should be prepared, documenting all test results and installation details for future reference.
Common Challenges in Power Transformer Installation and How to Overcome Them
Power transformer installation is not without its challenges. Below are some of the most common issues encountered during installation and expert solutions to overcome them.
Challenge 1: Moisture Ingress During Installation
Moisture ingress is one of the most common and damaging challenges in power transformer installation. Moisture can enter the transformer during transportation, storage, or installation, and it can degrade the insulation, leading to short circuits and equipment failure.
Solution: To prevent moisture ingress, take the following steps:
- Keep the transformer sealed during transportation and storage. If the transformer is shipped with a nitrogen blanket, maintain the nitrogen pressure until installation.
- Install the transformer in a dry environment. If installation is being done outdoors, avoid working during rainy or humid weather.
- Use a dehumidifier to reduce the humidity in the installation area.
- After installation, perform an insulation resistance test to check for moisture ingress. If moisture is detected, dry the transformer using a vacuum drying system.
Challenge 2: Improper Alignment of the Transformer
Improper alignment of the transformer on the foundation can lead to uneven settling, which can damage the transformer’s tank and internal components. It can also cause excessive vibration during operation, which can reduce the transformer’s lifespan.
Solution: To ensure proper alignment:
- Use a laser level to check the foundation’s flatness before installation.
- Align the transformer’s anchor bolt holes with the foundation’s anchor bolts before lowering the transformer.
- After placing the transformer on the foundation, check the alignment using a spirit level. Adjust the transformer if necessary.
- Secure the transformer to the foundation using anchor bolts tightened to the manufacturer’s recommended torque.
Challenge 3: Inadequate Cable Sizing
Inadequate cable sizing can lead to excessive voltage drop, overheating of the cables, and equipment failure. It’s a common mistake that occurs when installers fail to consider the transformer’s full load current.
Solution: To ensure proper cable sizing:
- Calculate the transformer’s full load current using the formula: I = (kVA × 1000) / (√3 × V). Where I is the full load current, kVA is the transformer’s rating, and V is the voltage.
- Select cables that can carry the full load current without exceeding the maximum allowable temperature. Refer to NEC or local codes for cable sizing guidelines.
- Consider the length of the cables. Longer cables have higher resistance, which can cause voltage drop. If the cables are long, use a larger gauge cable to reduce voltage drop.
Critical Testing and Commissioning After Power Transformer Installation
As mentioned earlier, testing and commissioning are critical to ensuring the transformer’s performance and safety. But what happens if the transformer fails a test? Clients often wonder: “What should I do if the transformer fails a commissioning test?”
If the transformer fails a commissioning test, the first step is to identify the root cause of the failure. Common causes of test failures include:
- Moisture ingress
- Damaged windings
- Loose connections
- Improper cable sizing
- Manufacturing defects
Once the root cause is identified, take the necessary corrective actions:
- If moisture is the cause, dry the transformer using a vacuum drying system.
- If the windings are damaged, repair or replace the windings (this should be done by a qualified transformer technician).
- If connections are loose, tighten the connections to the manufacturer’s recommended torque.
- If cable sizing is inadequate, replace the cables with the correct size.
- If the failure is due to a manufacturing defect, contact the manufacturer to arrange for repairs or replacement.
After making the corrective actions, re-test the transformer to verify that it passes all commissioning tests. Only after the transformer passes all tests should it be commissioned and put into service.
Long-Term Maintenance Tips Post Power Transformer Installation
Proper installation is just the first step in ensuring the transformer’s long-term reliability. Clients often ask: “What maintenance tasks are required after power transformer installation?”
Regular maintenance is essential to extend the transformer’s lifespan and prevent unplanned downtime. Below are some key maintenance tasks:
- Regular Inspections: Conduct visual inspections of the transformer on a monthly basis. Check for oil leaks, damage to the tank, and signs of overheating (such as discoloration of the tank). Inspect the bushings for cracks or contamination.
- Oil Analysis: For liquid-immersed transformers, analyze the insulating oil on a quarterly basis. Check for moisture, dissolved gases, and contaminants. If the oil quality deteriorates, replace or filter the oil.
- Temperature Monitoring: Monitor the transformer’s temperature during operation. Use temperature gauges or a remote monitoring system to track the temperature. If the temperature exceeds the maximum allowable limit, investigate the cause (such as overloading or poor ventilation).
- Load Monitoring: Monitor the transformer’s load to ensure it’s not operating beyond its rated capacity. Overloading can cause overheating and damage to the windings.
- Grounding System Inspection: Inspect the grounding system on an annual basis. Check for loose connections, corrosion, or damage to the grounding electrode. Ensure that the grounding system is functioning properly to protect the transformer from lightning strikes and voltage surges.
FAQs About Power Transformer Installation
To further address client doubt, below are answers to some of the most frequently asked questions about power transformer installation.
Q1: Can a power transformer installation be done without professional help?
A1: No, power transformer installation requires specialized knowledge, training, and equipment. Attempting to install a transformer without professional help can lead to safety hazards, equipment damage, and non-compliance with regulatory standards. It’s recommended to hire a qualified electrical contractor with experience in power transformer installation.
Q2: How long does a typical power transformer installation take?
A2: The duration of power transformer installation depends on several factors, including the transformer’s size, the complexity of the installation, and the site conditions. For a small transformer (up to 500 kVA), installation can take 2-3 days. For a large transformer (over 10,000 kVA), installation can take 1-2 weeks or more.
Q3: What is the cost of power transformer installation?
A3: The cost of power transformer installation varies depending on the transformer’s size, the site conditions, and the scope of the project. For a small transformer, installation costs can range from $5,000 to $15,000. For a large transformer, installation costs can range from $50,000 to $200,000 or more. It’s recommended to obtain quotes from several qualified contractors to get an accurate estimate.
Q4: What is the difference between indoor and outdoor power transformer installation?
A4: Indoor power transformer installation is typically done in buildings such as substations or industrial facilities. Indoor installations require proper ventilation, fire protection, and access for maintenance. Outdoor power transformer installation is done in open areas, such as utility poles or outdoor substations. Outdoor installations require protection from the elements (such as rain, snow, and extreme temperatures) and proper drainage.
Q5: How often should a power transformer be re-commissioned after installation?
A5: A power transformer should be re-commissioned after any major maintenance, repair, or modification. Additionally, it’s recommended to re-commission the transformer every 5-10 years to verify its performance and safety. Re-commissioning involves repeating the initial commissioning tests to ensure the transformer is still functioning correctly.
Q6:What are the key site preparation requirements for power transformer installation?
A6: Proper site preparation is foundational to safe and reliable transformer operation. The site must be flat, well-ventilated, and capable of supporting the transformer’s weight, with a solid concrete foundation that meets local codes and manufacturer specifications. Clearances from combustible materials and obstacles must comply with NEC 450 standards—for example, dry-type transformers over 112.5 kVA require a one-hour fire-rated transformer room. Outdoor installations must adhere to eCFR § 57.12067, which mandates that transformers be at least 8 feet above ground or surrounded by a 6-foot-tall fence 3 feet from energized parts.
Q7:What are the critical steps for transformer wiring and connections?
A7: Wiring and connections demand strict adherence to diagrams and electrical codes to ensure safety and performance. First, verify that primary and secondary voltages match the system design and transformer nameplate. Use torque wrenches to fasten connections to manufacturer-specified levels—loose terminals cause overheating and arcing. Phase sequence must be correct to prevent equipment malfunction, and neutral and ground wires must be properly separated and connected per NEC 450 guidelines. Post-connection, insulation resistance tests (typically 2500V) should confirm no leaks or short circuits.
Q8: Why is proper grounding essential for power transformer installation?
A8: Grounding is a critical safety measure that protects against electrical faults and voltage surges. The grounding system must have a low resistance (typically ≤4Ω) to divert fault currents safely to the earth. Ground wires must be securely connected to the transformer’s grounding bolt and a properly installed ground electrode, with connections free of corrosion. Compliance with IEC 60076-3 ensures that grounding minimizes touch voltage risks for personnel and prevents damage to the transformer’s core and windings from lightning or short circuits.
Conclusion
Power transformer installation is a complex and critical process that requires careful planning, technical expertise, and adherence to industry standards. By addressing the pre-installation considerations, following the step-by-step installation process, overcoming common challenges, and conducting thorough testing and commissioning, you can ensure that your transformer is installed safely and efficiently.
Proper installation not only ensures the reliable transmission of power but also extends the transformer’s lifespan and prevents unplanned downtime. Additionally, regular maintenance post-installation is essential to keep the transformer operating at peak performance.
If you have any further questions about power transformer installation, don’t hesitate to consult a qualified electrical contractor or transformer manufacturer. With the right knowledge and expertise, you can ensure that your power transformer installation is a success.
