Comprehensive Dry Resin Transformer Maintenance solutions

In the global power infrastructure landscape, dry resin transformers stand as a cornerstone of reliable electricity distribution, serving industries, commercial complexes, and residential areas with stable voltage conversion capabilities. Unlike oil-immersed transformers, their resin-cast insulation structure eliminates the risk of oil leakage and fire hazards, making them ideal for indoor installations and high-safety-demand scenarios. However, even the most robust electrical equipment requires meticulous maintenance to sustain performance and avoid costly downtime. Overlooking maintenance protocols, especially in the critical early stages of operation, can lead to premature failures, operational disruptions, and substantial financial losses. This article delves into the economic implications of prioritizing dry resin transformer maintenance and outlines evidence-based strategies to optimize asset lifespan and reliability.

Contents hide
1 Economic Significance of Dry Resin Transformer Maintenance
2 Dry Resin Transformer Maintenance Strategies
3 Conclusion
4 FAQ About Dry Resin Transformer Maintenance

Economic Significance of Dry Resin Transformer Maintenance

The economic value of dry resin transformer maintenance extends far beyond the upfront costs of inspections and part replacements—it is a strategic investment that safeguards power infrastructure integrity and minimizes long-term operational expenses. Insights from transformer management and operation departments across the globe consistently highlight a critical trend in equipment failure patterns, which directly ties to the economic impact of maintenance practices.
Epoxy Resin Cast Transformer (17)

Early-Stage Failure Risks and Cost Implications

Field data and operational case studies converge on a key observation: dry resin transformers face their highest failure probability during the first 10 years of service, with the initial three years representing the most vulnerable phase. This heightened risk stems from a combination of factors, including manufacturing residual stresses, initial installation imperfections, and the “break-in” period where components adapt to real-world operational loads.

The U.S. power sector’s experience with 765kV ultra-high voltage (UHV) dry resin transformers further underscores the urgency of early-stage maintenance. Operational data from major U.S. utilities reveals that a significant number of UHV transformer failures occur not over months or years, but within the first few days of commissioning—some even within hours or tens of minutes of initial operation. These catastrophic early failures are often rooted in undetected insulation defects, loose electrical connections, or malfunctioning cooling systems, issues that could be identified and resolved with proactive maintenance.

The financial toll of such unplanned failures is staggering. A single unplanned outage caused by a transformer breakdown can lead to production halts for industrial facilities, translating to daily losses ranging from tens of thousands to hundreds of thousands of dollars. For utility companies, outages result in penalties for service disruptions, emergency repair costs, and reputational damage that erodes customer trust. In contrast, investing in targeted early-stage maintenance—including comprehensive pre-commissioning inspections and post-installation monitoring—costs a fraction of the expenses associated with unplanned failures.

Cost-Benefit Analysis of Proactive Maintenance

Critics of proactive maintenance often focus on the immediate costs of inspections, part replacements, and diagnostic tests, viewing these expenses as an unnecessary burden on operational budgets. However, a holistic cost-benefit analysis paints a starkly different picture: every dollar spent on early maintenance delivers a high return on investment by identifying latent defects before they escalate into major issues.
Epoxy Resin Cast Transformer (3)
For example, a routine infrared thermography scan during the first six months of operation can detect localized overheating in winding connections—a common early-stage defect—at a cost of less than $1,500. Addressing this issue promptly with a connection tightening and insulation reinforcement job costs an additional $3,000. In contrast, ignoring the overheating defect could lead to winding insulation breakdown within a year, requiring a full transformer replacement that costs upwards of $200,000, plus the indirect costs of downtime and service disruptions.

This cost disparity is not an isolated case. Industry benchmarks show that proactive maintenance programs reduce unplanned transformer failure rates by 60–70% and cut overall maintenance costs by 30–40% over the equipment’s lifespan. For businesses and utilities relying on dry resin transformers, this translates to predictable budgeting, reduced financial volatility, and enhanced operational resilience.

Long-Term Economic Gains from Extended Asset Lifespan

Practice has repeatedly proven that a well-designed, consistently implemented maintenance program is the most effective way to extend the service life of dry resin transformers. The standard design lifespan of a dry resin transformer is 25–30 years, but without proper maintenance, many units fail within 10–15 years, forcing premature replacement.

Extending asset lifespan through maintenance creates two core economic benefits. First, it delays the capital expenditure required for transformer replacement, allowing organizations to allocate funds to other critical infrastructure upgrades. Second, it reduces the frequency of equipment disposal and replacement, which carries additional costs for transportation, installation, and compliance with environmental regulations for electrical waste.

Lihe Transformer, a leading manufacturer of dry resin transformers, emphasizes that a customized maintenance plan tailored to specific operational conditions can extend transformer lifespan by 10–15 years beyond the standard design period. This extension not only maximizes the value of the initial equipment investment but also reduces the total cost of ownership (TCO) by minimizing recurring replacement and installation expenses.

Dry Resin Transformer Maintenance Strategies

To fully capture the economic benefits of maintenance, organizations must adopt a structured, data-driven approach that aligns with the unique characteristics of dry resin transformers. There are three primary, complementary maintenance strategies widely recognized in the power industry: predictive maintenance, preventive maintenance, and condition-based maintenance. When integrated into a hybrid framework, these strategies create a comprehensive safety net for transformer performance.

Predictive Maintenance: Data-Driven Fault Prevention

Predictive maintenance represents the most forward-thinking approach to dry resin transformer upkeep, leveraging advanced monitoring technology and data analysis to anticipate failures before they occur. Unlike reactive maintenance (which addresses issues after they happen), predictive maintenance uses real-time and historical data to identify emerging fault trends, allowing maintenance teams to intervene proactively.

The core of predictive maintenance lies in deploying automatic alarm and diagnostic devices that continuously monitor key transformer performance indicators. These devices are paired with condition analysis tools that translate raw data into actionable insights. Common predictive maintenance techniques for dry resin transformers include:

  • Dissolved gas analysis (DGA): While dry resin transformers do not use oil for insulation, some models incorporate oil-filled cooling systems or voltage regulators. DGA for these components involves sampling and analyzing gas composition in the oil; abnormal gas levels indicate internal faults such as overheating or arcing.
  • Infrared thermography detection: This non-invasive technique uses thermal cameras to capture temperature distribution across the transformer’s surface. Localized hotspots—often invisible to the naked eye—signal loose connections, winding insulation degradation, or cooling system malfunctions.
  • Online performance monitoring: Sensors installed on the transformer track parameters such as load current, voltage output, winding temperature, and humidity levels. Real-time data is transmitted to a central monitoring system, where AI-powered algorithms detect deviations from normal operational baselines and trigger alarms.
  • Visual inspection enhancements: High-resolution cameras and drone technology enable regular visual checks of hard-to-reach transformer components, identifying issues like resin cracking, corrosion, or dust accumulation that could compromise insulation performance.

The advantage of predictive maintenance is its ability to minimize unplanned downtime by addressing issues in their earliest stages. It also optimizes maintenance scheduling, as teams can perform repairs during planned outages rather than emergency shutdowns.

Preventive Maintenance: Systematic Scheduled Upkeep

Preventive maintenance is a time-tested, periodic maintenance strategy that involves scheduled inspections, tests, and servicing based on manufacturer recommendations and operational standards. Unlike predictive maintenance, which relies on real-time data, preventive maintenance follows a predetermined timeline tailored to the transformer’s voltage rating, load conditions, and operating environment.

The scope of preventive maintenance for dry resin transformers includes a range of planned activities:

  • Regular electrical testing: Periodic measurements of insulation resistance, winding resistance, and dielectric strength to assess the integrity of the resin insulation and electrical connections. These tests are typically performed annually for medium-voltage transformers and semi-annually for UHV units.
  • Live-line testing: Conducted while the transformer is in operation, this test verifies the equipment’s performance under real load conditions, identifying issues such as voltage regulation inaccuracies or partial discharge that may not surface during offline testing.
  • Cooling system servicing: Cleaning heat sinks, replacing air filters, and inspecting fan motors to ensure optimal heat dissipation. Overheating is a leading cause of resin insulation degradation, making cooling system maintenance a core component of preventive protocols.
  • Environmental control checks: Inspecting the transformer’s installation environment for factors like humidity, dust accumulation, and temperature fluctuations, which can accelerate component wear.

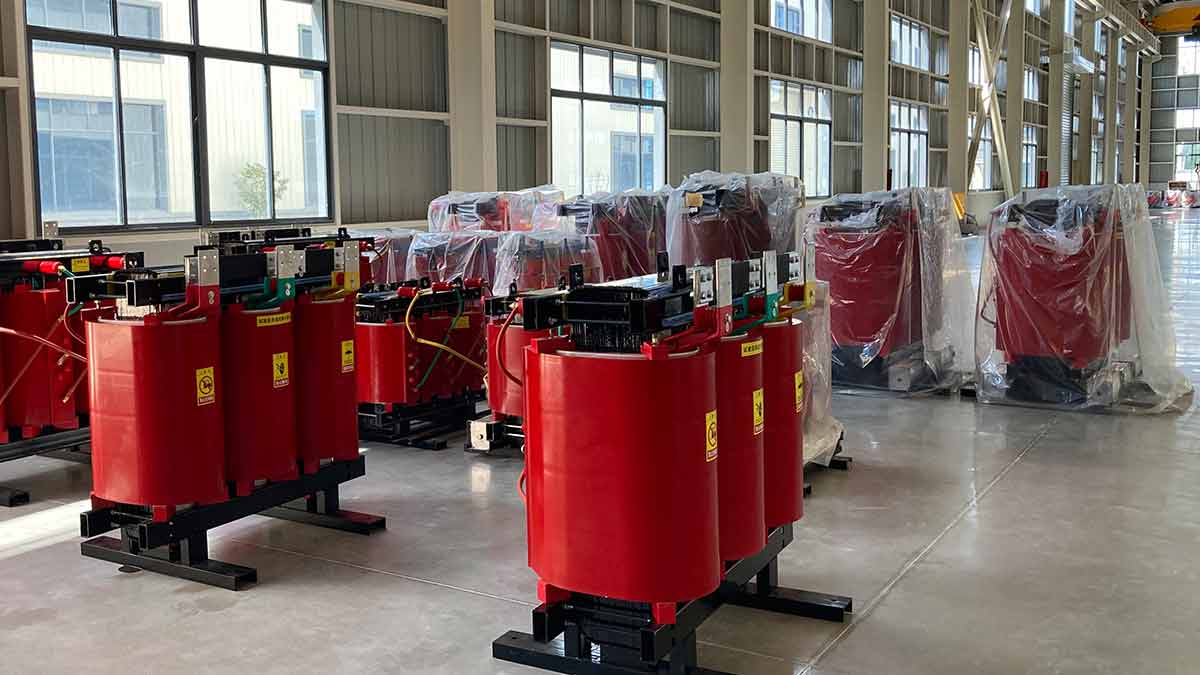

Epoxy Resin Cast Transformer (19)
Lihe Transformer’s engineering team recommends that preventive maintenance schedules be adjusted based on operating conditions—for example, transformers in high-humidity or dusty industrial environments require more frequent inspections than those in climate-controlled utility substations. Preventive maintenance is particularly effective at addressing wear-and-tear issues that occur gradually over time, ensuring that small, manageable problems do not escalate into costly failures.

Condition-Based Maintenance: Targeted Repairs for Troubled Units

Condition-based maintenance is a targeted strategy focused on transformers that show clear signs of performance degradation or operational abnormalities. It is a reactive but strategic approach, distinct from emergency repairs, as it involves systematic analysis and planning before any maintenance work is performed.

The trigger for condition-based maintenance can come from two sources: alerts from predictive monitoring systems or anomalies detected during preventive inspections. Once a potential issue is identified, maintenance teams follow a structured process:

  1. Comprehensive fault diagnosis: Using advanced testing equipment to pinpoint the root cause of the anomaly—for example, using partial discharge testing to locate insulation defects or vibration analysis to identify loose core components.
  2. Maintenance plan development: Designing a customized repair or replacement strategy based on the severity of the fault, the transformer’s criticality to operations, and the availability of replacement parts.
  3. Targeted repair execution: Performing focused maintenance work, such as replacing damaged insulation, repairing electrical connections, or upgrading cooling system components, rather than conducting a full overhaul.
  4. Post-repair validation: Conducting post-maintenance tests to ensure the transformer meets performance standards before returning it to full operation.

The key benefit of condition-based maintenance is its efficiency: it directs maintenance resources only to equipment that needs attention, reducing unnecessary downtime and costs. For organizations managing large fleets of transformers, this strategy allows teams to prioritize maintenance for critical units while extending intervals for equipment in good operating condition.

Conclusion

Dry resin transformer maintenance is not a discretionary expense—it is a strategic imperative that directly impacts the economic viability and reliability of power infrastructure. By understanding the high failure risks in the early stages of operation and investing in proactive maintenance, organizations can avoid costly unplanned outages, extend asset lifespan, and optimize total cost of ownership. The three core maintenance strategies—predictive, preventive, and condition-based—are not mutually exclusive; integrating them into a hybrid framework creates a holistic approach that addresses both emerging and existing issues.

For businesses and utilities looking to maximize the value of their dry resin transformer assets, partnering with experienced manufacturers like Lihe Transformer can provide access to customized maintenance guidelines and technical support. In an era where power reliability is non-negotiable, prioritizing maintenance is the key to unlocking long-term operational excellence and economic stability.

FAQ About Dry Resin Transformer Maintenance

What is the recommended maintenance frequency for Dry Resin Transformers?

The maintenance frequency primarily depends on the operating environment. In dry, clean indoor environments (e.g., data centers), annual inspection and maintenance are sufficient. In harsh environments with high dust, chemical fumes, or high humidity (e.g., industrial workshops, outdoor installations), inspections should be conducted every 3 to 6 months. Newly commissioned transformers require the first comprehensive inspection within 3 months of operation. For transformers operating continuously at full load, the maintenance frequency should be appropriately increased. Special attention should be paid to strengthening monitoring and maintenance during extreme temperature seasons (high or low temperatures).

Safety is paramount during maintenance. First, the transformer must be completely de-energized, and strict lockout/tagout (LOTO) procedures must be implemented to prevent accidental re-energization. Maintenance personnel must wear appropriate personal protective equipment (PPE), including insulating gloves, insulating sleeves, hard hats, and flame-resistant clothing. It is strictly prohibited to perform maintenance work on live equipment. Before starting work, verify that the transformer windings are properly grounded to discharge residual electricity. Additionally, ensure adequate ventilation in the maintenance area and avoid using flammable materials near the equipment.

Cleaning is a core part of maintenance to ensure unimpeded heat dissipation. First, confirm the transformer is de-energized and grounded. Use a dry vacuum cleaner or compressed air (pressure not exceeding 20-25 psi) to remove dust and debris from windings, cooling fans, and ventilation channels. Avoid direct physical contact with transformer components during cleaning. Never use water, damp cloths, or chemical cleaners, as they can damage the resin insulation and reduce insulation performance. After cleaning, check for loose hardware and tighten accessible bolts and fasteners to prevent vibration-induced issues during operation.

Temperature monitoring is critical to prevent insulation aging and overheating. Regularly check the operation of temperature monitoring devices such as resistance temperature detectors (RTDs) or thermometers. For F-class insulation, the average winding temperature rise should not exceed 100K above ambient temperature (typically 40°C); for H-class insulation, the maximum allowable temperature is 180°C. Verify the cooling fan control settings: fans should start automatically at 110°C and stop at 90°C. Test the over-temperature alarm (triggered at 155°C) and emergency shutdown (activated at 170°C) functions to ensure they work properly. Use infrared thermometers to detect local hotspots during operation.

Overheating is a common fault that can damage insulation and shorten service life. When an over-temperature alarm is triggered, first check the load status and cooling system operation. If overloading is the cause, reduce the load or distribute the load to other transformers. If the cooling fan fails or the ventilation channel is blocked, repair the fan or clean the channel immediately. For localized overheating caused by loose connections, tighten the connections after de-energization. If the temperature continues to rise (exceeding 170°C), manually shut down the transformer, identify the root cause (e.g., turn-to-turn short circuit, core multi-point grounding), and only restart after troubleshooting.

Protective devices (over-temperature, over-current, over-voltage protection) are critical for safe operation. During maintenance, test the sensitivity and reliability of these devices through simulated fault tests. Verify that the over-temperature alarm and emergency shutdown functions operate correctly at the set temperatures. Check the operation of the temperature controller: if there is no display, first inspect and replace the fuse if necessary. Test the over-current and over-voltage protection relays to ensure they can trip quickly and accurately when faults occur. Calibrate protective devices annually to ensure their performance meets standard requirements.

For new Dry Resin Transformers (within 5 years of operation), maintenance focuses on verifying installation quality, testing the performance of new components (fans, sensors), and establishing baseline operating data. Routine inspections and annual comprehensive tests are sufficient. For aging transformers (over 15 years old), maintenance should be intensified: increase the inspection frequency to every 3 months, conduct comprehensive tests (including insulation power factor, short-circuit impedance) twice a year, and closely monitor insulation condition and winding temperature. For aging transformers with obvious performance degradation, consider upgrading key components (e.g., cooling system, insulation materials) or replacing the entire unit.
